| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V420-15 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=Exhaust=1/2'' | Valve Type: | Double Solenoid 5 Port 2 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| Highlight: | 4V420-15 Pneumatic Valve,5/2 Way Pneumatic Valve,AirTAC Type 4V420-15 |
||

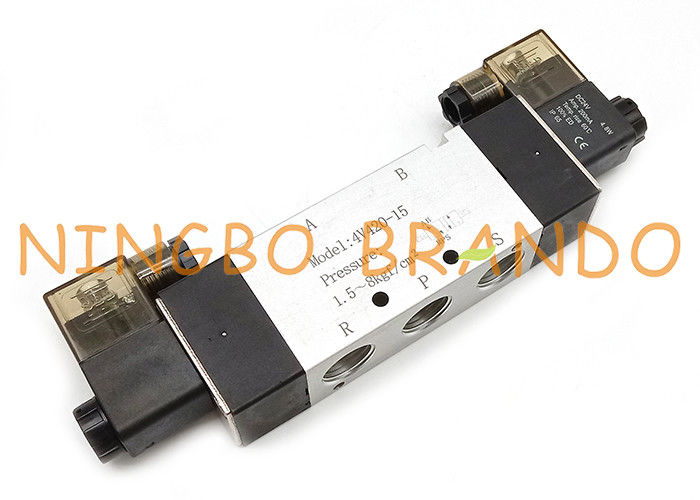

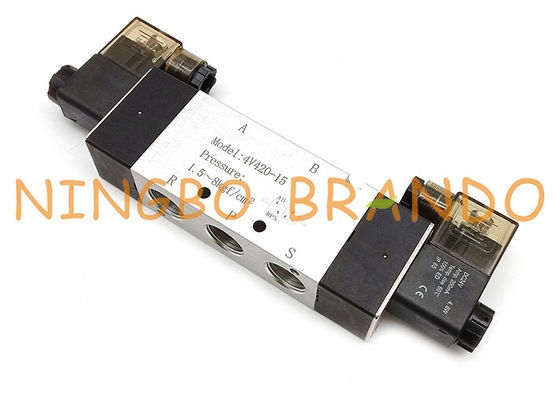

4V420-15 1/2'' DIN Connetcor Double Solenoid 5/2 Way Pneumatic Valve
How is a solenoid valve controlled?
At the simplest level, solenoids can be controlled using a manually operated electrical on/off switch, which is sufficient in some applications. Most of the time however, more complex control is required using a control board. Control boards digitally set valves to operate at timed intervals or can be programmed to operate the valve when certain conditions are met, for instance when it receives a signal from a pressure switch.
5/2 Way Single Coil Pneumatic Solenoid Valve:4V110-06, 4V110-08, 4V210-06, 4V210-08, 4V310-08, 4V310-10, 4V410-15
5/2 Way Double Coil Pneumatic Solenoid Valve:4V120-06, 4V120-08, 4V220-06, 4V220-08, 4V320-08, 4V320-10, 4V420-15
5/3 Way Double Coil Pneumatic Solenoid Valve:4V130C-06, 4V130C-08, 4V230C-06, 4V230C-08, 4V330C-08, 4V330C-10, 4V430C-15
Technical Data:
|
Model
|
4v410-15
|
4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
||||
|
Acting
|
Internal pilot or external pilot
|
||||
|
Port Size
|
In=Out=Exhaust=1/2''
|
||||
|
Orifice Size
|
50.00 mm² (Cv=2.79)
|
30.00 mm² (Cv=1.68)
|
|||
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
|||
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
||||
|
Proof
|
1.5MPa (215psi)
|
||||
|
Temperature ℃
|
-20 to 70
|
||||
|
Material of Body
|
Aluminum alloy
|
||||
|
Max. frequency
|
3cycle/sec
|
||||
Dimension Diagram:
4V420(Grommet)
4V420(Terminal)
Product Features:
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
