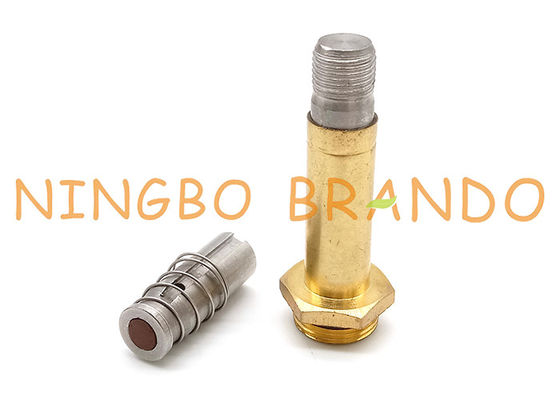

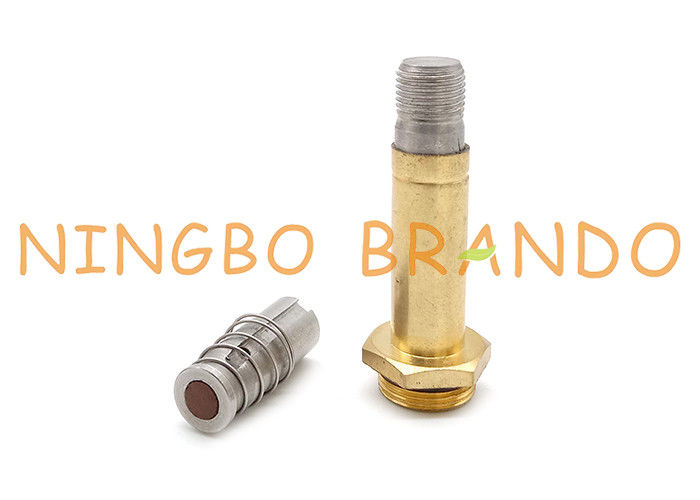

Pneumatic Solenoid Valve M12 Brass Armature Stem NBR Seal Iron Core

Pneumatic Solenoid Valve M12 Brass Armature Stem NBR Seal Iron Core

Although the basic function remains the same, pneumatic 5/2-way valves are available in uncountable design variations with regards to size, material, color, connection interfaces, etc. This is necessary to meet a wide range of requirements, such as medical use, food processing, dusty environments, explosive environments etc.

Most 5/2-way valves have a movable spool with seals along the length in a cylinder. The valve ports connect to this central cylinder. By moving the spool through the cylinder, the valve ports are connected or blocked. Furthermore, the valve can be direct operated or pilot operated. With direct operation, the actuator is directly connected to the spool. With pilot operation, the valve uses the inlet pressure to help move the spool. The valve contains a small internal pneumatic cylinder that actuates the spool. The filling and emptying of this cylinder is controlled by the actuator, for example a solenoid. 5/2-way valves are usually pilot operated.

Dimension of BAPC209027709 Armature Assembly:

Technical Data:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
