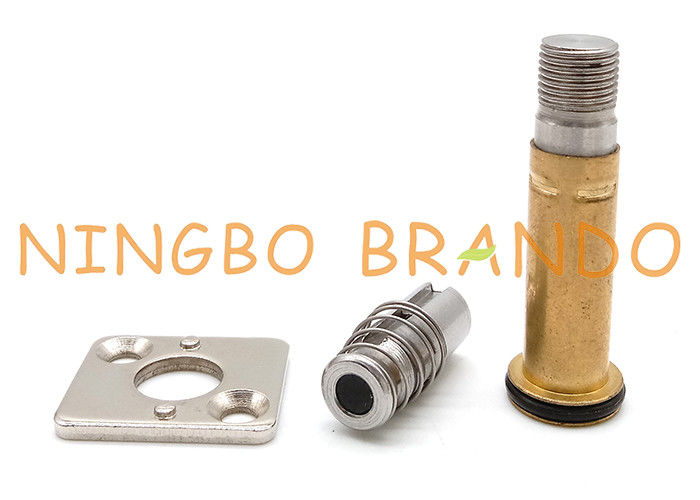

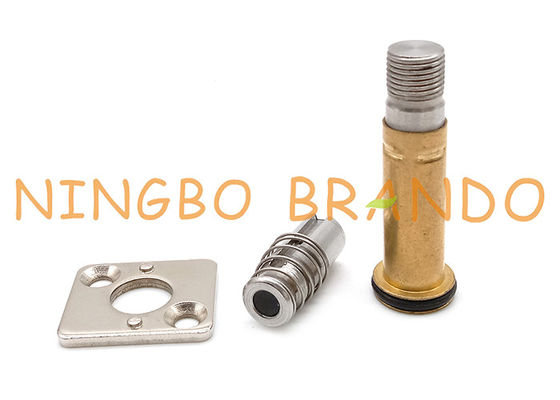

2 Way NC Brass Guide Tube Flange Pneumatic Solenoid Valve Armature

2 Way NC Brass Guide Tube Flange Pneumatic Solenoid Valve Armature

Many 5/2-way valve types are available with manual override, or even with a lock mechanism. The benefits of the lock mechanism can be seen during maintenance – the valve keeps the designated position until the lock is released – so the actuated pneumatic elements, such as cylinders or grippers retain their positions. One possible use for the manual override is testing the system; the valve doesn’t need to be electrically energized to be actuated. To switch the valve, it is enough to push the override button. A disadvantage of a lock mechanism is that operators might forget to remove the lock.

While selecting a solenoid valve, the type of electrical connector needs to be considered. Some manufacturers have a wide range of connector designs or use standard DIN connectors, such as DIN43650 type A, B and C. The connectors are available with different IP grades that indicate how well the connector protects against the ingress of water and dust. Another connector option is an indicator light which can be useful to detect valve malfunction or power loss.

Dimension of BAPC209029003 Armature Assembly:

Technical Data:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
