| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | D300 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR, FKM |
|---|---|---|---|
| Seat Material:: | Rubber, Nylon | 1 Set: | 1x Main Diaphragm, 1x Secondary Diaphragm |
| Fitted Pulse Valve Port Size: | 12'' | Fitted Pulse Valve Model: | DMF-N-300 |
| Highlight: | DMF-N-300 Pulse Valve Diaphragm,DMF-N-300 Pulse Valve Membrane,BFEC Dust Collector Pulse Valve Diaphragm |
||

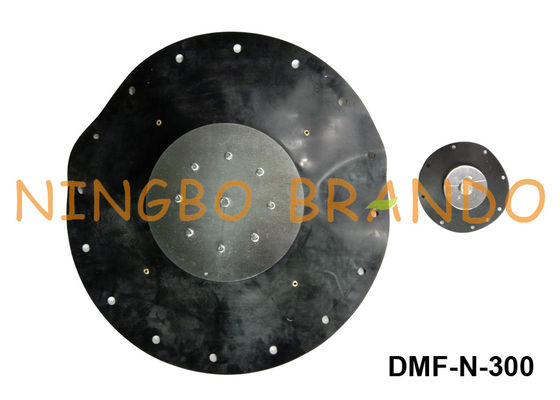

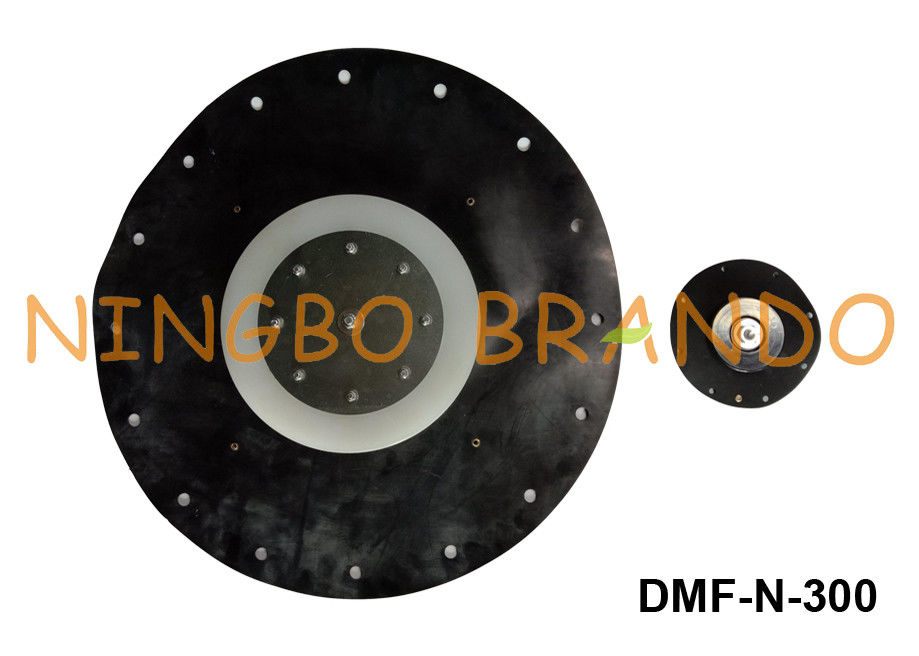

BFEC Pulse Jet Solenoid Valve Membrane For 12'' DMF-N-300
Diaphragm (Membrane) for 12'' BFEC pulse valve DMF-N-300; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Ordering Number of Diaphragm For SBFEC Pulse Valve:
|
Diaphragm For New Version BFEC Pulse Valves
|
||
|
Diaphragm Order Code
|
Fitted Pulse Valve Model
|
Valve Port Size
|
|
DTY
(Secondary Diaphragm)
|
All Double Diaphragm Pulse Valves
|
/
|
|
D20A
|
DMF-Z20
|
3/4''
|
|
DMF-ZM-20
|
||
|
D20B
|
DMF-ZL-B
|
3/4''
|
|
D25
|
DMF-Z-25
|
1''
|
|
DMF-ZM-25
|
||
|
DMF-Y-25
|
||
|
DMF-T-20
|
3/4''
|
|
|
D40
|
DMF-Z-40S
|
1-1/2''
|
|
DMF-Y-40S
|
||
|
DMF-ZF-40S
|
||
|
DMF-ZM-40S
|
||
|
DMF-T-25S
|
1''
|
|
|
D50
|
DMF-Z-50S
|
2''
|
|
DMF-Y-50S
|
||
|
DMF-T-50S
|
||
|
D62
|
DMF-Z-62S
|
2-1/2''
|
|
DMF-Y-62S
|
||
|
DMF-T-62S
|
||
|
D76
|
DMF-Z-76S
|
3''
|
|
DMF-Y-76S
|
||
|
D102
|
DMF-Z-102S
|
4''
|
|
DMF-Y-102S
|
||
|
D102A
|
DMF-Y-102SA
|
4''
|
|
D300
|
DMF-N-300
|
12''
|
|
Diaphragm For Old Version BFEC Pulse Valves
|
||
|
LD50
|
DMF-Z-50S (Old)
|
2''
|
|
DMF-Y-50S (Old)
|
||
|
DMF-T-50S (Old)
|
||
|
LD62
|
DMF-Z-62S (Old)
|
2-1/2''
|
|
DMF-Y-62S (Old)
|
||
|
DMF-T-62S (Old)
|
||
|
LD76
|
DMF-Z-76S (Old)
|
3''
|
|
DMF-Y-76S (Old)
|
||
Pictures of Pulse Valve Diaphragm Production:
