| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | CA76MM |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Port Size: | 3 Inch | Valve Type: | Manifold Mount Pulse Valve |
|---|---|---|---|
| Power: | Solenoid | Structure: | Diaphragm |
| Application: | Dust Collector | Body Material: | Aluminum (diecast) |
| Seal Material: | NBR(common, All Available) | Voltage: | AC220V, AC110V, AC24V, DC24V |
| Highlight: | CA76MM Pulse Jet Valve,Submerged Pulse Jet Valve,Goyen Type CA76MM |
||

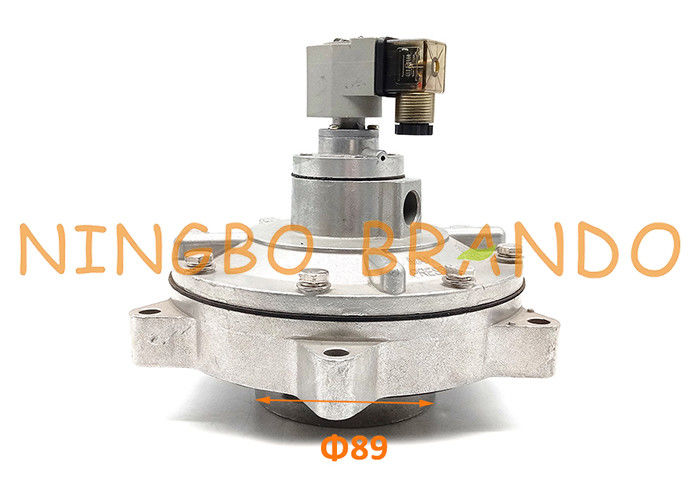

CA76MM 3 Inch Submerged Baghouse Filter Dust Collector Pulse Jet Valve
Video On Youtube About CA76MM 3'' Solenoid Pusle Valve:
Technical Data of CA76MM Manifold Mount Pulse Valve:
| Model No. | CA76MM |
| Port Size | G3 Inch |
| Nominal Size | 76mm |
| Number of Diaphragm | 2 |
| Working Media | Air |
| Working Pressure | 0.3~0.8Mpa |
| Working Temperature | -5~+55℃ |
| Body Material | Aluminum Alloy |
| Seal Material | NBR(common, all available) |
| Voltage | AC220V, AV110V, AC24V, DC24V |
Special voltages and special specifications, please contant us.
Overall Dimension:
Details About CA76MM Submerged Pulse Valve:
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel
Maintenance Kits of CA76MM Valve:
| Model | Nitrile | FKM | Incldes |
| CA/RCA76MM | K7600 | K0384 | Diaphragm kits include main and secondary diaphragms and all spring |
| k0380 | O-ring, armature assembly, armature spring, ferrule |
