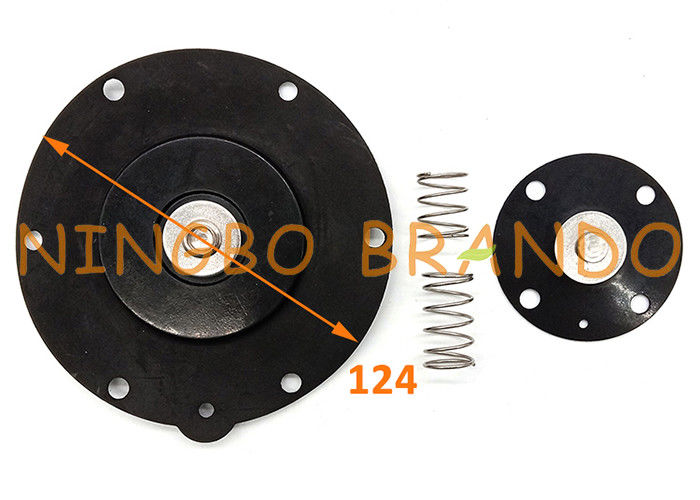

K4503 M2163 1-1/2 Inch Pulse Jet Valve FKM Diaphragm Repair Kit

K4503 M2163 1-1/2 Inch Pulse Jet Valve FKM Diaphragm Repair Kit

The diaphragm of goyen-45 plateau pulse valve is the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter, and the diaphragm in the valve body is the key to its normal operation. The diaphragm of the electromagnetic pulse valve is in the key position. The pulse controller inputs the electrical signal to make the electromagnetic pilot head attractive, open the unloading hole and start to work.

The diaphragm is a kind of circular membrane elastic sensitive element. Its material is composed of one layer The thickness of the membrane is usually 0.2 ~ 1.1mm, and the service life of the membrane is usually more than millions of times. When the two sides of the membrane are affected by different pressures (or forces), the membrane moves towards the side with low pressure, making the center produce a displacement related to the pressure difference.

Deference number:

Dimension Diagram:

Detailed Images:

Youtube video of diaphragm videos:

Our Production:

Packing＆shipping

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
