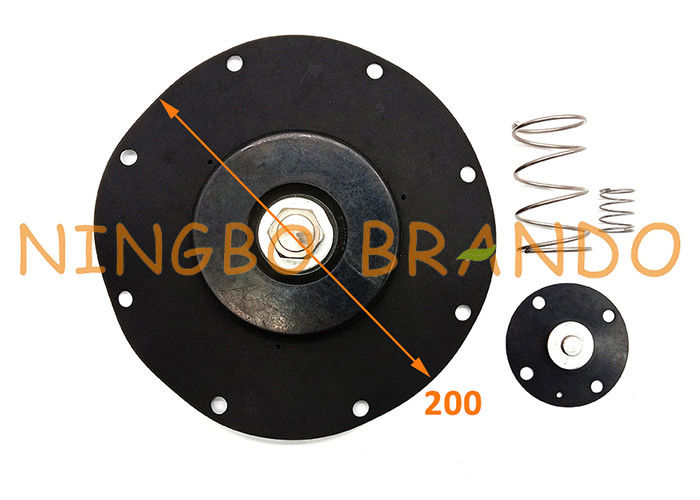

K7602 CA76 RCA76 Series 3 Inch Pulse Jet Valve Diaphragm Repair Kit





Model	Goyen CA76T pulse valve diaphragm G76
Center distance	φ184.5
Application	Dust System
Hole number for mounting	8
Working temperature	-20℃--80℃
Working pressure	0.2Mpa-0.6Mpa
Working medium	Clean Air
Diaphragm working life	More than 1 million cycles
Name	rubber diaphragm
Material	VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR



VITON Series Rubber







Advantages of Pulse Valve Diaphragm:
Pulse valve diaphragm with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, can easily ensure the complete synchronous operation with other control components, control the pulse compressed air injection. Even in extremely harsh working environment, it can guarantee its normal work and long service life. At the ambient temperature of -20-80℃ and the operating pressure difference of 0.8mpa, the working life of the diaphragm is not lower than 1 million times.

Structure performance

Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.



The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.
