Industrial Textile Machine Inkjet Printer Solenoid Valve Armature

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature

Asco 302-273 Solenoid Valve Repair Kit
Use for 8210G001 and 8210G002 series solenoid valves.

This kit contains cap, springs, clip, core tube assembly, core assembly, o-rings, diaphragm/seat assembly, and instructions.

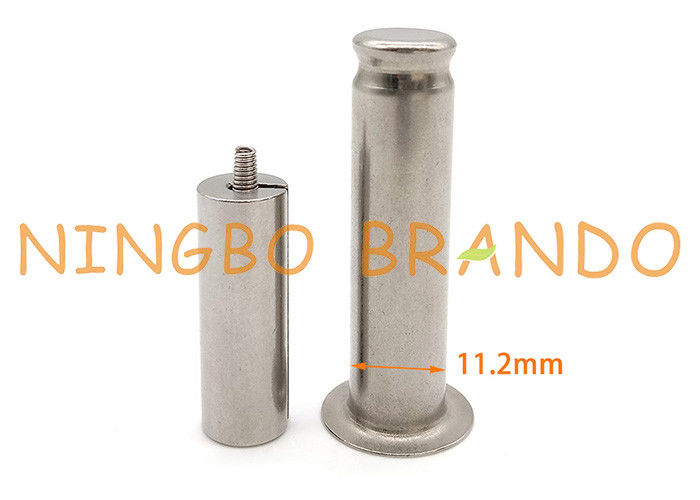

This armature assembly is designed for ASCO type red hat solenoid valve such like 3UK48, 3UK50, 3UK51, 3UK53, 3UK56, 8210G001 and 8210G002 series solenoid valves. The stem plunger set including 1 x stainless steel armature tube, 1 x stainless steel plunger with NBR seal and 1 x stainless steel spring. The armature tube outer diameter is 11mm, so it is suitable to 11mm inner hole diameter solenoid valve coil. The standard plunger's seal material is NBR, but HNBR, VITON, EPDM, Silicone are all available to customize.

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

      Copper Shading Ring                                Flange Seat

                  Plunger Slot                                  NBR Seal

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Armature:

As we all know, armature is used to enhance magnetic of solenoid. When you choose the materials for solenoid, just pick the one that has magnetic conductivity larger than1. This kind of material is common, such as manganese, cobalt and such type of metallic oxide. In a word, larger magnetic conductivity armature has, larger of magnetic field of solenoid will has. Compared to iron, other metals have less magnetic conductivity and higher cost, so that they are fairly applied for armature manufacture.
