Air Compressor Timer Auto Drain Valve 14mm OD Armature Assembly

Air Compressor Timer Auto Drain Valve 14mm OD Armature Assembly

Automatic drain valves remove mixtures of water and compressor lubricants from compressed air systems. An automatic drain valve eliminates the need for a maintenance worker to patrol the plant, manually dumping liquid from the air system.
Overview. The Orbit Auto Drain Valve prevents pipes from freezing by automatically draining sprinkler lines when the water is turned off. The valve installs easily at the lowest point of your sprinkler zone.

Condition:New
Applicable Industries:Air Compressor
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando

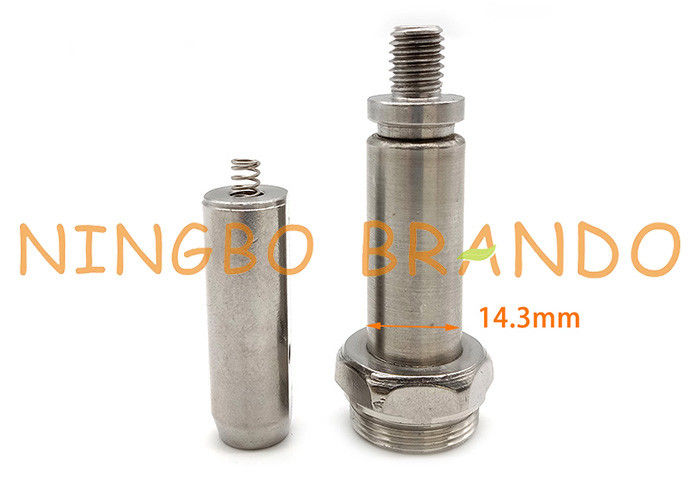

Guide Tube Outer Diameter:14.3mm
Installation Height for Coil Assembling:37.3mm
Plunger Seal for Orifice Diameter:8.5mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:M20x1 Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:High Pressure Auto Drain Valve

Dimension of BAPC214338504 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
