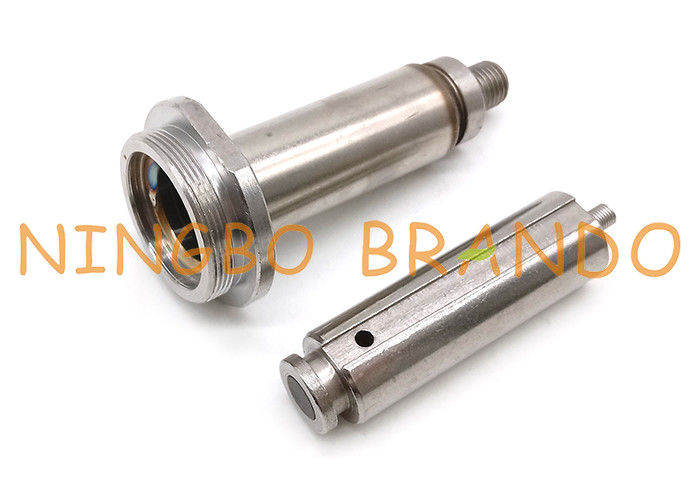

2/2 Way NC 22mm OD M32 Thread Seat SS304 Armature Plunger

2/2 Way NC 22mm OD M32 Thread Seat SS304 Armature Plunger

This is 1 set of M32 seat stainless steel 304 plunger tube, 1 x stainless steel magnetic plunger with NBR seal and 1 x stainless steel spring for 2 way normally closed water solenoid valve rebuild kit, such like 2W350-35, 2W400-40, 2W500-50.

Product Features:

1. The plunger tube is stainless steel 304;
2. The tube seat is M32 thread;
3. The plunger adopts rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting;
4. Spring: Rustproof SUS304 stainless steel, with good performance of restore.
5. Seals: Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

Dimension of Solenoid Valve Armature Assembly:

Detailed images of Solenoid Valve Armature Assembly:

 Copper Shading Ring             M32 Thread Seat

                  Plunger Slot                            NBR Seal

Data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.
