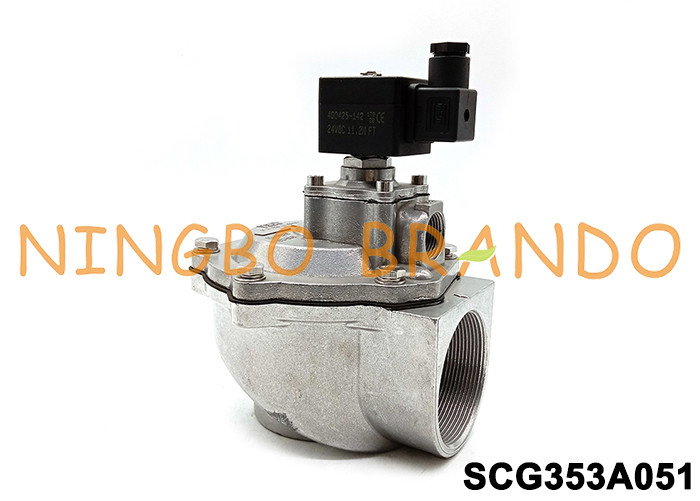

SCG353A051 SCDU353A051 2-1/2'' Diaphragm Valve 24 / DC

SCG353A051 SCDU353A051 2-1/2'' Diaphragm Valve 24 / DC

Working principle of 353 series dust collector valves:
The two chambers of the dust collector valves are connected together through an air passage (smaller in diameter than the pilot valve orifice when so equipped). When the orifice is opened, the air in the upper chamber is exhausted, at a much faster rate than the speed of which air enters through the air passage, therfore the air pressure in the upper chamber drops significantly. As this occurs, the higher air pressure in the lower chamber pushes the diaphragm up allowing a large volume of air through to the bottom chamber and its outlet connected to the dust collector bags. This sudden burst of air inflates the filter bags or "pops" the filter bags so as to shake loose accumulated material on the outside of each filter bag. When the orifice closes, the pressure in the upper and lower chambers equalize and the diaphragm returns to its original position, aided by the force of a return spring. The dust collector valves are important components to keep dust collector systems operating efficiently and effectively.

Technical Data of ASCO Pulse Jet Valve:

ASCO Type Solenoid Pulse Jet Valve:

Model No.	BB14040007
Ref No.	400425
Voltage	AC24V, AC110V, AC220V, DC12V, DC24V
Connection	DIN 43650A
Other can be customized, please contact us.





Model No.	BAPC214041405
Ref No.	C113827
NC/NO	NC
2 Way or 3 Way	2Way
Other can be customized, please contact us.







Model No.	A051
Ref No.	C113685
Replace For	SCG353A051
Mounting Hole Dia.	8.5mm
Sealing Disc OD	/

Ref. Number	SCG353A050
Working Pressure	0.3~0.8Mpa
Voltage	24V DC, 110V AC, 220V AC Other voltages can be customized.
Diaphragm Nos	2
Port Size	G2''
Other requirement please contact.





353 Series Pulse Jet Valve For Dust Collector System:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
