| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | K20 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 to 14 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Ball Vibrator | Port Size: | G1/4'' |
|---|---|---|---|
| Rated Frequency: | 10500 To 16500 RPM | Centrifugal Force: | 720 To 1720 N |
| Air Consumption: | 130 To 340 L/min | ||
| Highlight: | Pneumatic Vibrator K20,K20 Pneumatic Ball Vibrator,Findeva K-20 |
||

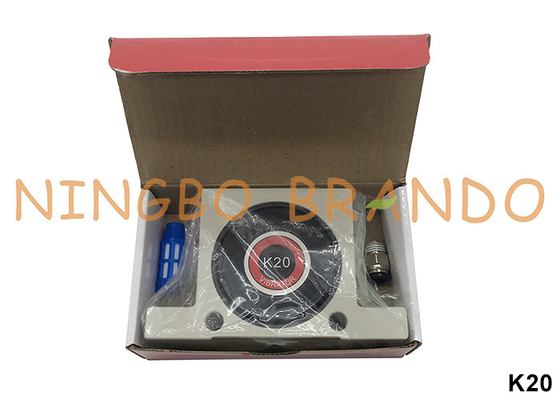

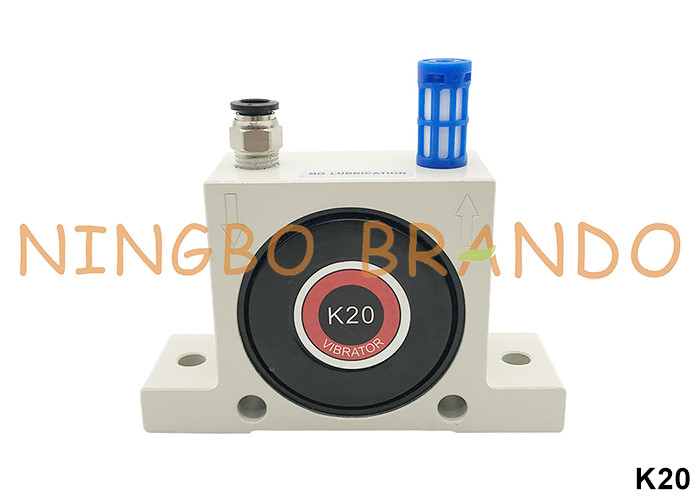

K20 Findeva Type Industrial Pneumatic Ball Vibrator For Bin Hopper
You can expect a powerful ball vibrator with a centrifugal force ranging from 130 – 4050 N when you choose from our K series. Vibration is caused by a ball that's guided by hardened steel plates, while nylon plates on either side support the ball and offer protection from moisture and dust. The extruded aluminium housings have four mounting bores which can be used according to the application. Continuously variable with a rated frequency of between 7300 to 35000 rpm, these durable components can be used at temperatures of up to 100°C. Should you require a ball vibrator that can withstand extreme heat, our up to 150°C HT-Version is available on request.
Main Dimension of K Series Pneumatic Ball Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
K-8
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-10
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-13
|
65
|
24
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-16
|
65
|
27
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-20
|
80
|
33
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-25
|
80
|
38
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-30
|
100
|
44
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
K-36
|
100
|
50
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
Technical Data of K Series Pneumatic Ball Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
K-8
|
25.5
|
31.0
|
35.0
|
130
|
260
|
360
|
83
|
145
|
195
|
|
K-10
|
22.5
|
28.0
|
34.5
|
250
|
470
|
710
|
92
|
150
|
200
|
|
K-13
|
15.0
|
18.5
|
22.5
|
320
|
550
|
870
|
94
|
158
|
225
|
|
K-16
|
13.0
|
17.0
|
19.5
|
450
|
800
|
1100
|
122
|
200
|
280
|
|
K-20
|
10.5
|
14.5
|
16.5
|
720
|
1220
|
1720
|
130
|
230
|
340
|
|
K-25
|
9.2
|
12.2
|
14.0
|
930
|
1570
|
2050
|
160
|
290
|
425
|
|
K-30
|
7.8
|
9.7
|
12.5
|
1510
|
2470
|
3210
|
215
|
375
|
570
|
|
K-36
|
7.3
|
9.0
|
10.0
|
2060
|
3150
|
4050
|
260
|
475
|
675
|
Construction of K Series Pneumatic Ball Vibrators:
