| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2S025-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Valve Series: | 2S Series | Ref. Number: | UNI-D Type SUS-08 |
|---|---|---|---|
| Voltage: | AC110V AV220V DC24V | Action: | Direct Acting |
| Port Size: | 1/4'' | Media: | Water Air Gas |
| Fluid Viscossity: | Below 20 CST | Power: | Solenoid |
| Body Material: | Stainless Steel | Diaphragm Material: | NBR, FKM And EPDM |
| Highlight: | 2S025-08 Stainless Steel Solenoid Valve,DC24V Stainless Steel Solenoid Valve,Uni-D SUS-08 |
||

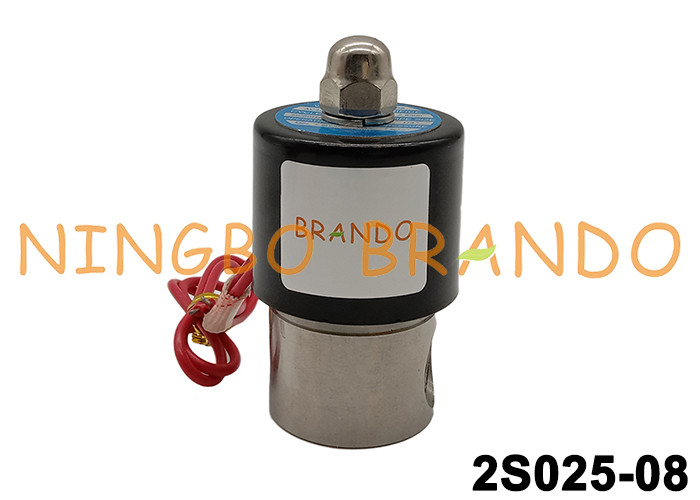

2S025-08 Stainless Steel Solenoid Valve DC24V AC220V 1/4''
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W & 2S Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
Features:
1.Direct-Acting, conductive, normally closed.
2.Valve body material is Stainless steel.
3.Can be operated directly without pressure.
4.Small size and easy assembly.
5.Standard voltage : 24VDC,110VAC, 220VAC AC Voltage tolerance: ± 10% ,
DC Voltage tolerance:±1%.
6.Other special AC/DC can be made to client's order.
7.Thread: BSPT, NPT , BSP.
8.The standard product fluid temperature is 80°C(NBR).
9.Temperature:Viton(130°C), Silicon(130°C), PTFE(185°C).
10. DIN43650A connector Coil is interchangeable
