| Type: | Straight Through Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 2-1/2''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| Highlight: | DMF-T-62S Diaphragm Valves,Straight Through Type Diaphragm Valves,SBFEC DMF-T-62S |
||

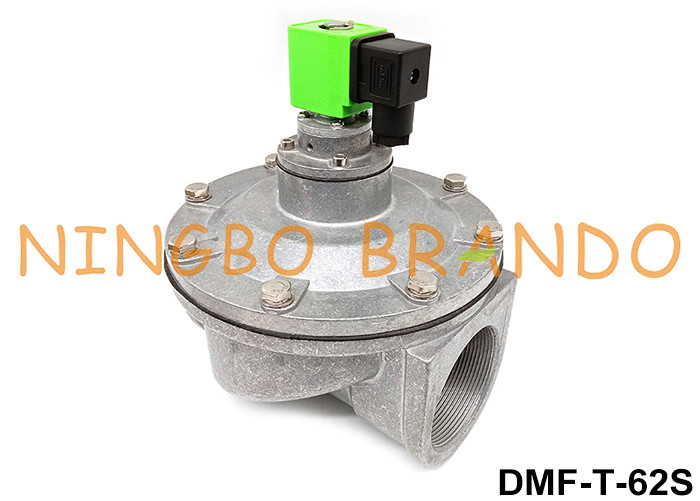

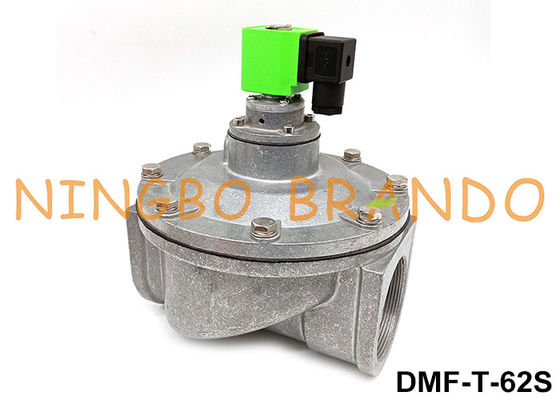

DMF-T-62S Diaphragm Valves 2-1/2" BFEC Straight Through Type
Features of SBFEC Type Pulse Jet Valve:
1.Can withstand high pressure
High quality die casting Aluminum alloy valve body with good resistance to moisture and corrosion,would hold a pressure up to 0.8Mpa. Diaphragm Life over One million blows or 3 years.
2.Application
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Technical Data of SBFEC Type DMF Series Striaght Through Pulse Jet Valve:
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
