| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BC-64 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Pulse Controller | Input Voltage: | 24VDC, 220VAC |
|---|---|---|---|
| Output Voltage: | 24VDC, 220VAC | Pulse Durtion: | 0.03 To 0.2 Seconds |
| Pulse Frequency: | 1 To 30 Seconds | Max Output Channel: | 64 Channel |
| Highlight: | Pulse Valve Sequential Timer,Pulse Valve Sequential Controller,Pulse Jet Timer Controller |
||

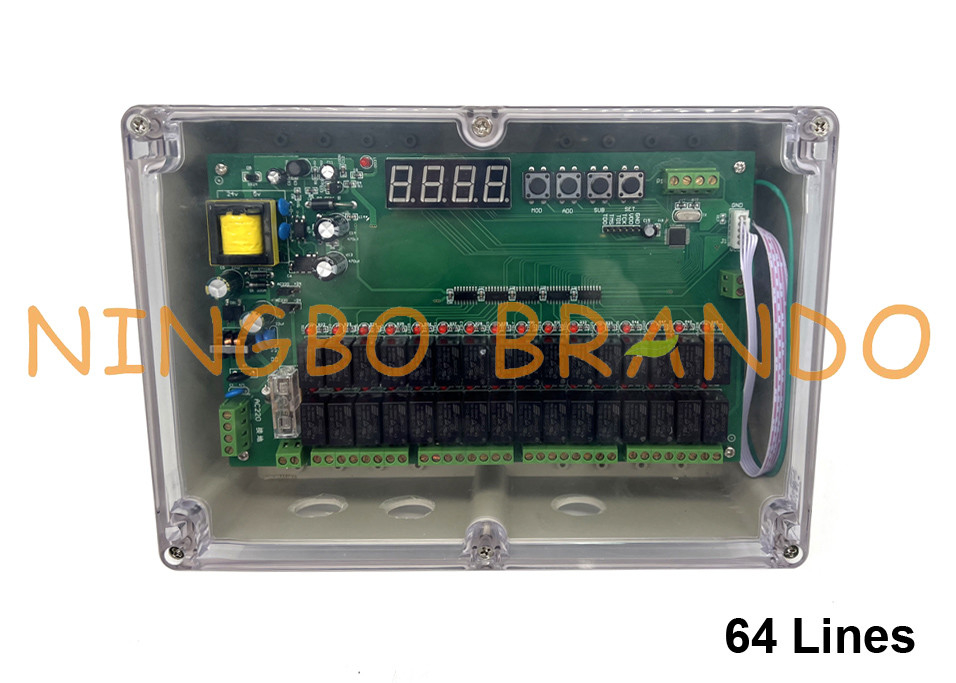

64 Channel Pulse Valve Sequential Timer Controller For Dust Removal
Diaphragm and solenoid valves work together for efficient operation of the dust collector cleaning system. They are the "switch" for compressed air in the dust clean blowing system. Controlled by the output signals of the pulse jet controller, they make dust clean to the filters by filters to keep the pressure drop of dust collector within the set range and thus guarantee the filtering functions and the efficiency of dust collector.
Technical Data of Pulse Jet Valve Controller:
|
Model No
|
BC-08
|
BC-10
|
BC-12
|
BC-20
|
BC-24
|
BC-30
|
BC-36
|
BC-56
|
BC-64
|
|
Output Channel
|
1-8
|
1-10
|
1-12
|
1-20
|
1-24
|
1-30
|
1-36
|
1-56
|
1-64
|
|
Input Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Output Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Pulse Frequency
|
1 to 30 Seconds
|
||||||||
|
Pulse Durtion
|
0.03 to 0.2 Seconds
|
||||||||
|
Working Environment
|
1. -25°C~+55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock
|
||||||||
Main Dimension of Pulse Jet Valve Controller:
|
Output Lines
|
1-8
|
1-20
|
1-36
|
1-64
|
|
Dimension
|
115x135x65
|
160x160x95
|
230x150x90
|
248x188x105
|
Details Images of Pulse Jet Valve Controller:
Product Video of 64 Lines Pulse Controller:
