Focus on your demands
Offer you best solution
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CA50T |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 2 Inch | Valve Series: | T Series |
|---|---|---|---|
| Valve Structure:: | Right Angle, Threaded Port | Coil Voltages: | DC24V, AC110V, AC220V |
| Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.35 To 0.85 MPa |
| Highlight: | 2 Inch Pulse Jet Valve,T Series Pulse Jet Valve,Dust Collector Pulse Valve 24V |
||

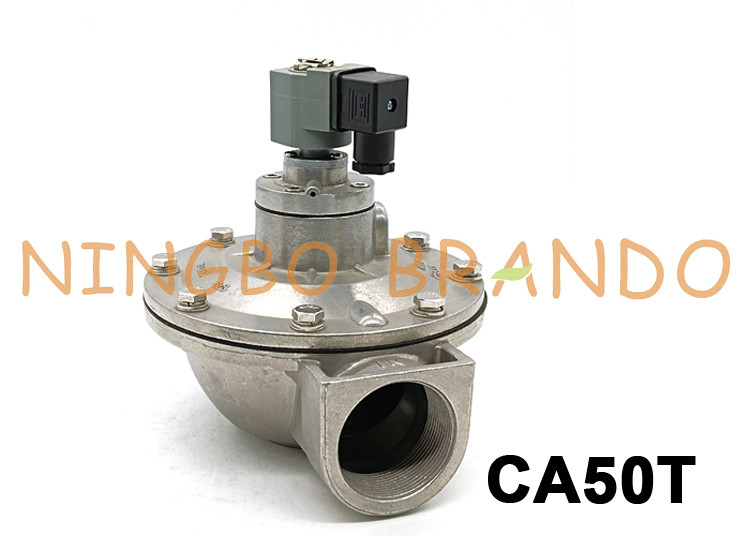

CA50T Goyen Type Pulse Jet Valve Threaded Right Angle T Series For Dust Collector
The air pipe is connected with the solenoid jet valve by the right angle compression ring. During pulse valve injection, due to the 90 degree turning inertia impact of pressure air flow, the inlet connection of pulse jet valve is easy to loosen and separate. The inlet and exhaust ports of the right angle pulse valve adopt special nuts and special sealing rings, which are sealed with the port end of the valve body on the outer wall of the smooth inlet and exhaust pipe. It has the advantages of simple structure, convenient operation and reliable sealing.
Technical Data of T Series Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Dimension of CA50T Pulse Jet Valve:
Ordering Code of T Series Pulse Jet Valve:
Video of CA50T Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
