| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BC-24 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name:: | Pulse Controller | Max Output Channel Number: | 24 Channel |
|---|---|---|---|
| Input Voltage: | 220VAC | Output Voltage: | 24VDC, 220VAC |
| Pulse Frequency: | 1 To 30 Seconds | Pulse Durtion: | 0.03 To 0.2 Seconds |
| Highlight: | Pulse Valve Sequence Timer,Pulse Valve Sequence Controller,Pulse Valve Controller Board |
||

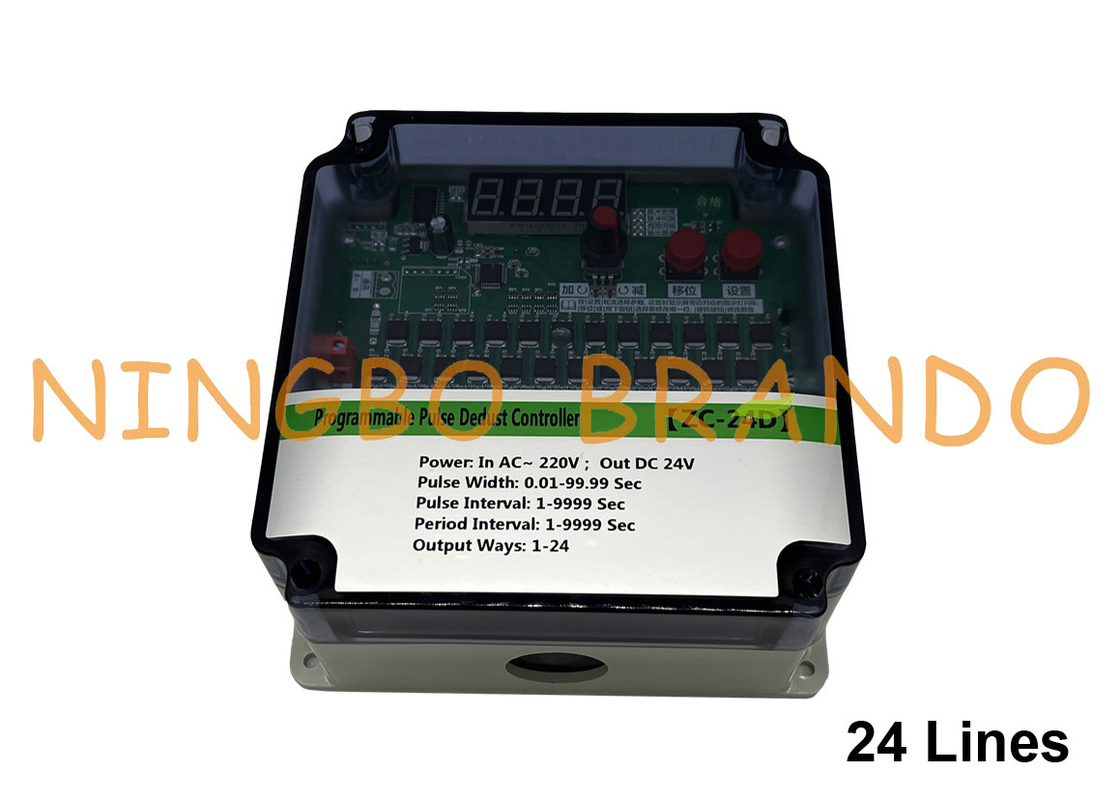

24 Channel Pulse Jet Valve Sequence Timer Controller For Dust Collector
The pulse jet controller is the main piece of control equipment in the pulse jet dust cleaning system of baghouse. Its output signals control the electromagnetic pulse valves to blow and inject compressed air to remove dust from the filter-bag in sequence to keep the running resistance of the bag-house within the set range, thus guaranteeing the high processing ability and dust-collecting efficiency of baghouse.
Technical Data of Pulse Valve Controller:
|
Model
|
BC-08
|
BC-10
|
BC-12
|
BC-20
|
BC-24
|
BC-30
|
BC-36
|
BC-56
|
BC-64
|
|
Output Lines NO.
|
1-8
|
1-10
|
1-12
|
1-20
|
1-24
|
1-30
|
1-36
|
1-56
|
1-64
|
|
Input Voltage
|
220VAC, Other voltage can be customized
|
||||||||
|
Output Voltage
|
24VDC, 220VAC, Other voltage can be customized
|
||||||||
|
Pulse Frequency
|
1 to 30 Seconds
|
||||||||
|
Pulse Durtion
|
0.03 to 0.2 Seconds
|
||||||||
|
Working Environment
|
1. -25°C~+55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock
|
||||||||
Main Dimension of Pulse Valve Controller:
|
Output Lines
|
1-8
|
1-20
|
1-36
|
1-64
|
|
Dimension
|
115x135x65
|
160x160x95
|
230x150x90
|
248x188x105
|
Details Images of Pulse Valve Controller:
Video of 24 Channel Pulse Controller:
