| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE, ISO |
| Model Number: | CAC25FS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 10000 pcs per month |
| Port Size: | 1 Inch | Valve Series: | FS Series |
|---|---|---|---|
| Valve Structure:: | Flanged Port | Diaphragm Material: | NBR, FKM |
| Working Pressure Range: | 0.35 To 0.85 MPa | Coil Voltages: | 24VDC, 110VAC, 220VAC |
| Highlight: | Goyen Type Pulse Jet Valve,CAC25FS Pulse Jet Valve,Dust Collector Pulse Valve 1 Inch |
||

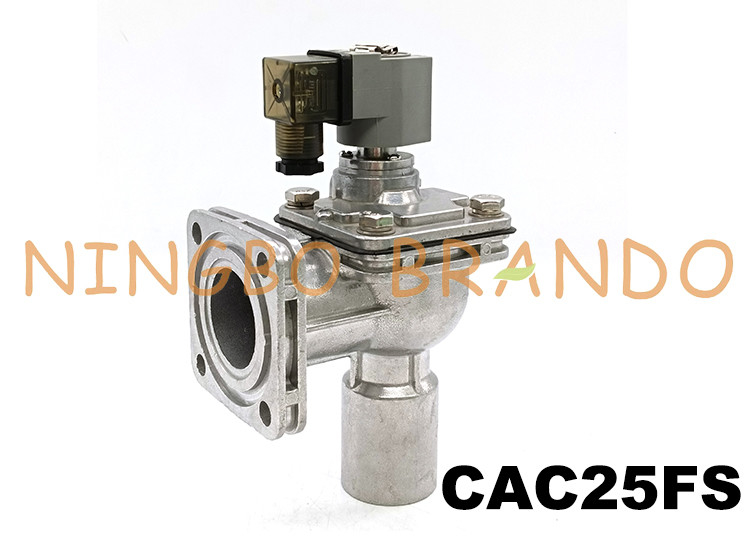

Goyen Type CAC25FS 1" Pulse Jet Valve Flanged Inlet FS Series For Baghouse
Goyen Type CAC25FS is a fs series pulse Jet valve with very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve.Outlet at 90° to inlet. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
Technical Data of FS Series Pulse Jet Valves:
|
Model Number
|
CAC25FS
|
CA45FS
|
|
Port Size
|
1''
|
1.5''
|
|
Valve Structure
|
Right Angle, Flanged Port
|
|
|
Working Pressure Range
|
0.35 to 0.85 Mpa
|
|
|
Coil Voltage
|
24VAC, 110VAC, 220VAC, 24VDC
|
|
|
Valve Body Material
|
Aluminium Alloy
|
|
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|
Main Dimension of CAC25FS Dust Collector Pulse Jet Valve:
Ordering Code of FS Series Pulse Jet Valve:
Video of Goyen Type CAC25FS Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
