| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MD-04M |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Membrane | Membrane Material: | NBR |
|---|---|---|---|
| Seat Material: | Nylon | 1 Set: | 1pc Big Diaphragm, 1pc Small Diaphragm, 2pcs Springs |
| Fitted Pulse Valve Port: | 1.5'' | Fitted Pulse Valve Model: | TH-5440-M, TH-4440-M |
| Highlight: | MD03-40M 1.5'' Membrane,Taeha 1.5'' Membrane,Taeha MD03-40M |
||

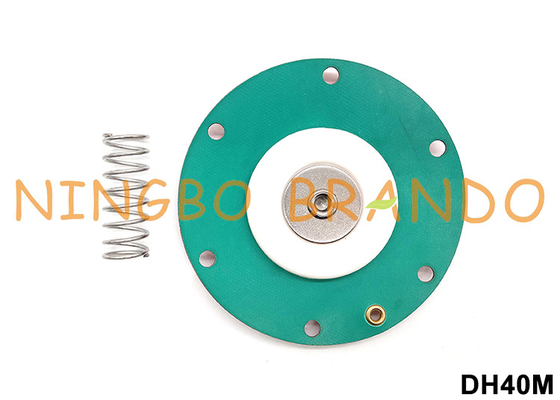

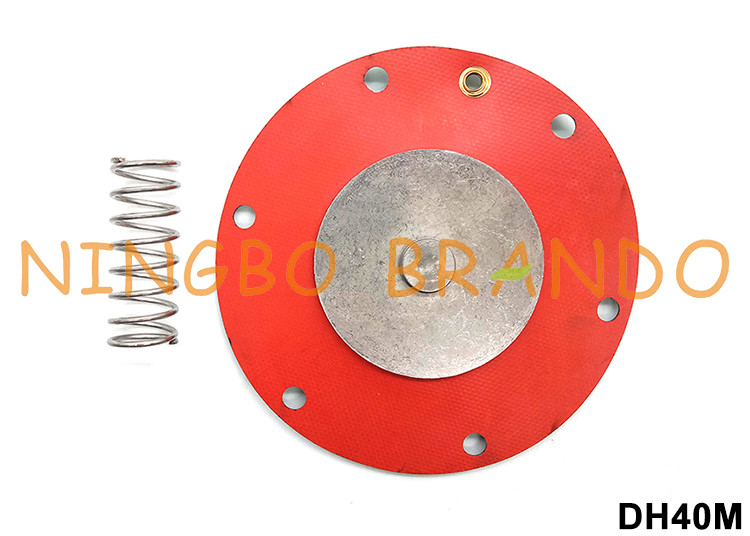

MD03-40M 1.5'' Membrane For Taeha Pulse Valve TH-5440-M TH-4440-M
MD03-40M Diaphragm (Membrane) for Taeha pulse valve TH-5440-M, TH-4440-M; On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.
Ordering Code of Diaphragm For Taeha Pulse Valve:
|
BRANDO Model
|
Reference Number
|
Port Size
|
Fitted Pulse Valve Model
|
Color
|
Material
|
|
DH20
|
MD01-20
MD02-20
|
3/4''
|
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
|
Red & Green
|
NBR
|
|
DH25
|
MD01-25
MD02-25
|
1''
|
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
|
||
|
DH25M
|
MD01-25M
|
1''
|
TH-5825-M
|
||
|
DH40
|
MD01-40
MD02-40
MD03-40
|
1 1/2''
|
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
|
||
|
DH40M
|
MD03-40M
|
1 1/2''
|
TH-5440-M
TH-4440-M
|
||
|
DH50
|
MD03-50
|
2''
|
TH-5450-B
TH-4450-B
|
||
|
DH50M
|
MD03-50M
|
2''
|
TH-5450-M
TH-4450-M
|
||
|
DH60
|
MD03-60
MD04-60
|
2 1/2''
|
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
|
||
|
DH75
|
MD03-75
|
3''
|
TH-5475-B
TH-4475-B
|
||
|
DH75M
|
MD03-75M
|
3''
|
TH-5475-M
TH-4475-M
|
Dimension of MD03-40M Diaphragm:
Main Diaphragm
Secondary Diaphragm
Video of MD03-40M Diaphragm:
Pictures of Solenoid Valve Membrane Production:
