| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | UPVC-32F, CPVC-32F |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Anti Corrosion Solenoid Valve | Function: | 2 Way, Normally Closed |
|---|---|---|---|
| Pipe Connection: | Flanged | Port Size: | 1 1/4'' |
| Orifice Size: | 32mm | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Fluids: | Weak Acid & Alkali (Gas, Liquid) | Valve Body Material: | UPVC, CPVC |
| Seal Material: | FKM, EPDM | Working Pressure Range: | 0.01 To 0.6 MPa |
| Highlight: | 1-1/2'' Plastic Solenoid Valve,Flanged Plastic Solenoid Valve,UPVC Anti Corrosion Valve |
||

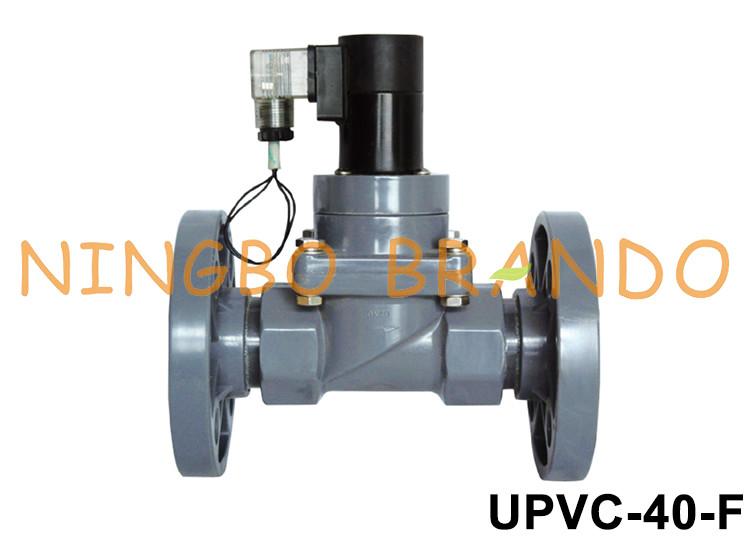

1 1/4'' Flanged UPVC PVC Plastic Solenoid Valve Anti Corrosion 24V 220V
UPVC is a kind of stiff PVC,which has strong the properties of strong force, abrasion resistant, flammability and electrical insulation. It is suitable for the general corrosive fluid.
CPVC is the modified products of PVC resin, which is a kind of new resin by the chlorination process. Comparing to the traditional PVC resin, the CPVC has better chemical stabilities and the anti-corrosion properties are improved, it has better performance in the working condition with high heat, acid, alkali, salt and oxidant. The max. woking temperature up to 110℃, the regular working temperature is 95℃. CPVC is a kind of new engineering material with wide application.
Technical Data of UPVC / CPVC Body Solenoid Valve:
Main Dimension of UPVC / CPVC Body Solenoid Valve:
Female Thread Port
Flange Port
Brando Solenoid Valve Factory Production Video:
