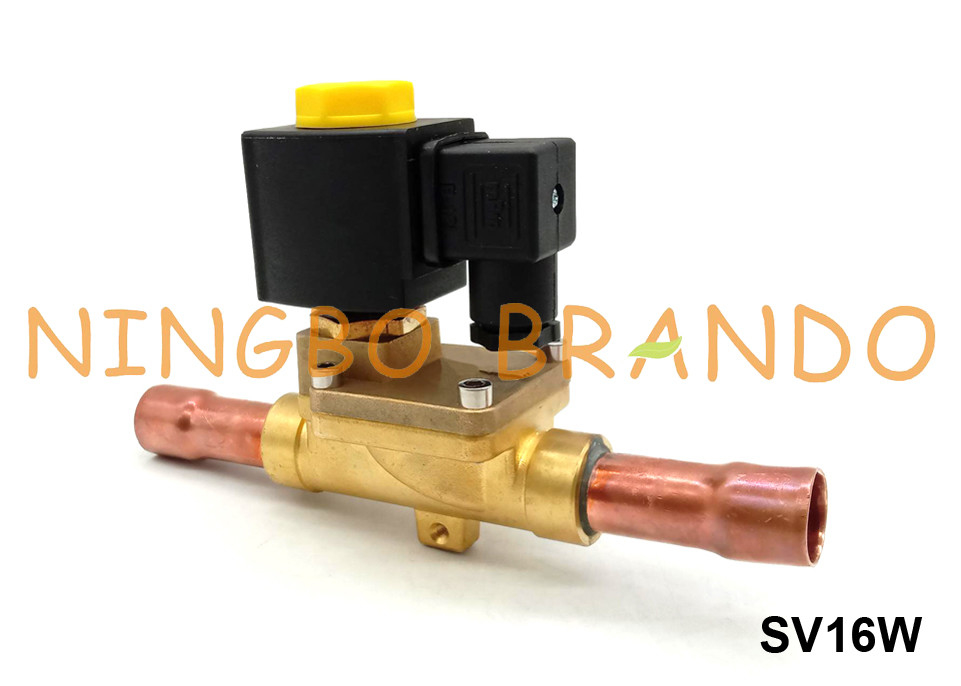

SV16W FENSHEN Type Refrigeration Solenoid Valve 3/4'' 24VDC 220VAC

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	SV16W

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20000 sets per month

Contact Now

Detailed Product Description

Product Name:	Refrigeration Solenoid Valve	Port Size:	3/4''
Connection:	Solder (ODF)	Function:	2 Way Normally Closed
Operation:	Diaphragm Pilot Operated	Refrigerant:	R134a, R22, R407C, R404A/507, Etc
Working Pressure Range:	0.005 To 2.1 MPa	Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC
Highlight:	FENSHEN Refrigeration Solenoid Valve , 3/4'' Refrigeration Solenoid Valve , FENSHEN SV16W

SV16W FENSHEN Type Refrigeration Solenoid Valve 3/4'' 24VDC 220VAC

SV series solenoid valves for refrigeration, freezing and air conditioning plant applications in liquid, suction, and hot gas lines with refrigerants.

Options for you:

1. Connection Type: Flare (SAE), Solder (ODF);
2. Port Size: 1/4'', 3/8'', 1/2'', 5/8'', 3/4'' , 7/8'', 1-1/8'', 1-3/8'', 1-5/8'';
3. Operation: Direct Acting, Diaphragm Pilot Operated;
4. Coil Type: Best-NO.0210
5. Coil Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC.

Ordering Code of SV Series Refrigeration Solenoid Valves:

SV16W FENSHEN Type Refrigeration Solenoid Valve 3/4'' 24VDC 220VAC 0

Specifications of SV Series Refrigeration Solenoid Valves:

Model	Connection Size (inch)	Connection Type	Kv (m³/h)	Operating Pressure (MPa)			Dimension (mm)
				Min	Max		Length	Wide	Height
				Min	AC	DC	Length	Wide	Height
SV1.6	1/4''	Flare (SAE)	0.15	0	3	2.6	48	33	55
SV2	1/4''		0.16		3	2.6	70	30	75
SV3	1/4''		0.23		2.1	1.7	70	30	75
SV6	5/16''		0.4	0.005	2.1	1.7	85	45	97
SV8	3/8''		1				85	45	97
SV10A	1/2''		1.8				85	45	97
SV13A	5/8''		3				89	45	97
SV16	3/4''		4.5				118	60	120
SV19	7/8''		5				118	60	120
SV1.6W	1/4''	Solder (ODF)	0.15	0	3	2.6	80	33	55
SV2W	1/4''		0.16		3	2.6	118	30	75
SV3W	1/4''		0.23		2.1	1.7	118	30	75
SV6W	5/16''		0.4	0.005	2.1	1.7	126	45	97
SV8W	3/8''		1				126	45	97
SV10AW	1/2''		1.8				126	45	97
SV13AW	5/8''		3				150	45	97
SV16W	3/4''		4.5				190	60	120
SV19W	7/8''		5				190	60	120
SV25W	1 1/8''		9.5	0.03			240	72	120
SV25W	1 3/8''		9.5				250	72	120
SV32W	1 3/8''		15				260	86	130
SV32W	1 5/8''		15				281	86	130

More Refrigeration Products for you to choose:


Expansion Valve	Reversing Valve	Refrigeration Ball Valve

Hot Gas Bypass Valve	Crankcase Pressure Regulator	Sight Glass
