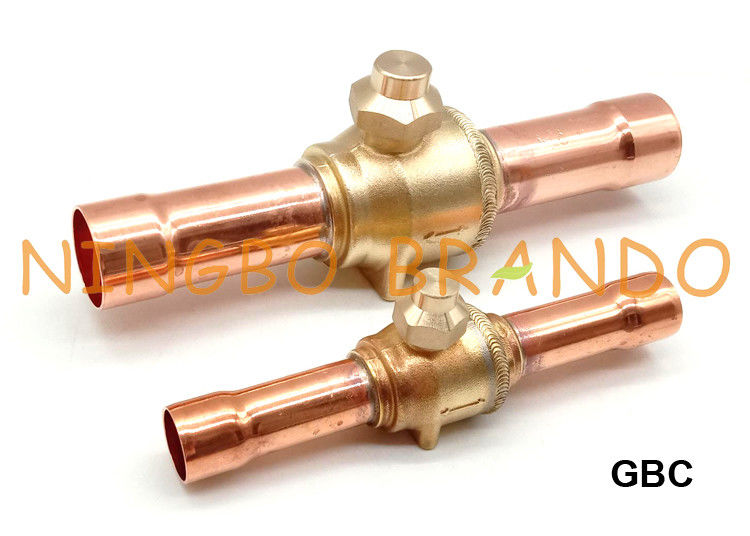

Name: GBC Series Danfoss Type Refrigeration Shut Off Ball Valve 1/4'' to 1 5/8''
Brand: Ningbo Brando Hardware Co., Ltd
SKU: GBC
Price: Negotiable USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

GBC Series Danfoss Type Refrigeration Shut Off Ball Valve 1/4'' to 1 5/8''

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	GBC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Refrigeration Shut-off Ball Valve	Port Size (Inch):	1/4'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1 1/8'', 1 3/8'', 1 5/8''
Connection:	Solder (ODF)	Refrigerant:	CFC, HCFC, HFC
Max Working Pressure:	45 Bar	Medium Temperature Range:	-40 °C To 100 °C
Access Port:	Without	Flow Direction:	Single Flow
Highlight:	Danfoss Ball Valve GBC , Danfoss GBC Valve , Refrigeration Shut Off Ball Valve

GBC Series Danfoss Type Refrigeration Shut Off Ball Valve 1/4'' to 1 5/8''

Refrigeration Shut-off Ball Valves, type GBC, GBCH, GBCT are manually operated shut-off valves for CO2 refrigeration systems, in order to open and to shut off inner flow path by operating the valve spindle.

The valves are specifically designed for intrinsic standstill security, meaning that the valves can withstand pressures normally arising when the refrigeration system is shut off, i.e. during serving or during unexpected power failure.

The valve structure and materials are designed and tested specifically for use with CO2 refrigerant.

GBC and GBCH valves are designed to use in subcritical CO2 refrigeration systems. GBCT valves are approved for use in transcritical CO2 systems.

Technical Data of GBC series Refrigeration Ball Valves:

Model No	Connection Size (Solder ODF)		Kv (m³/h)	Cv (gal/min)	Max Working Pressure (bar)	Medium Temp Range (℃)	Code No
Model No	Inch	mm	Kv (m³/h)	Cv (gal/min)	Max Working Pressure (bar)	Medium Temp Range (℃)	Without Access Port	With Access Port
GBC 6s	1/4''	-	1.74	2.01	45	-40 to +100	009L7520	009L7553
GBC 6s	-	6mm	1.74	2.01			009L7570	009L7554
GBC 10s	3/8''	-	7.52	8.69			009L7521	009L7555
GBC 10s	-	10mm	7.52	8.69			009L7571	009L7556
GBC 12s	1/2''	-	12.92	14.94			009L7522	009L7557
GBC 12s	-	12mm	12.92	14.94			009L7572	009L7558
GBC 16s	5/8''	16mm	15.66	18.10			009L7523	009L7534
GBC 18s	3/4''	-	21.93	25.35			009L7524	009L7563
GBC 18s	-	18mm	21.93	25.35			009L7574	009L7564
GBC 22s	7/8''	22mm	33.34	38.54			009L7525	009L7536
GBC 28s	1 1/8''	-	62.25	71.96			009L7526	009L7565
GBC 28s	-	28mm	62.25	71.96			009L7576	009L7566
GBC 35s	1 3/8''	35mm	92.76	107.23			009L7528	009L7567
GBC 42s	1 5/8''	-	134.76	155.78			009L7529	009L7568
GBC 42s	-	42mm	134.76	155.78			009L7579	009L7569

Dimension of GBC series Refrigeration Ball Valves:

GBC 35s Danfoss Type Refrigeration Ball Valve With Access Port 1 3/8'' 009L7567 0

Model No	Port Size	H	H1	L	L1	L2	L3	L4	L5	M	D	d
GBC 6s	1/4''	50	15	139	7	75	73	22	31	M4x0.7	14	1.5
GBC 6s	6mm	50	15	139	7	75	73	22	31	M4x0.7	14	1.5
GBC 10s	3/8''	50	15	139	8	75	73	22	31	M4x0.7	14	1.5
GBC 10s	10mm	50	15	139	8	75	73	22	31	M4x0.7	14	1.5
GBC 12s	1/2''	50	15	161	10	75	84	22	31	M4x0.7	14	1.5
GBC 12s	12mm	50	15	161	10	75	84	22	31	M4x0.7	14	1.5
GBC 16s	5/8''	50	15	161	12	86	84	22	31	M4x0.7	14	1.5
GBC 16s	16mm	50	15	161	12	86	84	22	31	M4x0.7	14	1.5
GBC 18s	3/4''	58	19	185	14	99	96	30	37	M4x0.7	19	1.5
GBC 18s	18mm	58	19	185	14	99	96	30	37	M4x0.7	19	1.5
GBC 22s	7/8''	58	19	185	17	99	96	30	37	M4x0.7	19	1.5
GBC 22s	22mm	58	19	185	17	99	96	30	37	M4x0.7	19	1.5
GBC 28s	1 1/8''	80	25	208	20	112	108	38	44	M4x0.7	26	1.5
GBC 28s	28mm	80	25	208	20	112	108	38	44	M4x0.7	26	1.5
GBC 35s	1 3/8''	89	30	251	25	136	130	48	44	M6x1.0	32	1.5
GBC 35s	35mm	89	30	251	25	136	130	48	44	M6x1.0	32	1.5
GBC 42s	1 5/8''	110	35	281	29	151	145	55	56	M6x1.0	38	1.5
GBC 42s	42mm	110	35	281	29	151	145	55	56	M6x1.0	38	1.5

BRANDO Production Picture:

GBC 35s Danfoss Type Refrigeration Ball Valve With Access Port 1 3/8'' 009L7567 1
