| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CMV |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 14 to 30 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Refrigeration Check Valve | Port Size (Inch): | 1/4'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1 1/8'', 1 3/8'', 1 5/8'', 2 1/8'', 2 5/8'', 3 1/8'' |
|---|---|---|---|
| Connection: | Solder | Compatibility: | CFC, HCFC, HFC And HFO Refrigerants And Oils |
| Max Working Pressure: | 55 Bar Up To 5/8'' Sizes | Working Temperature: | -40°C To 149°C |
| Highlight: | Mueller Magnetic Check Valve,Mueller Refrigeration Check Valve,Refrigeration Magnetic Check Valve |
||

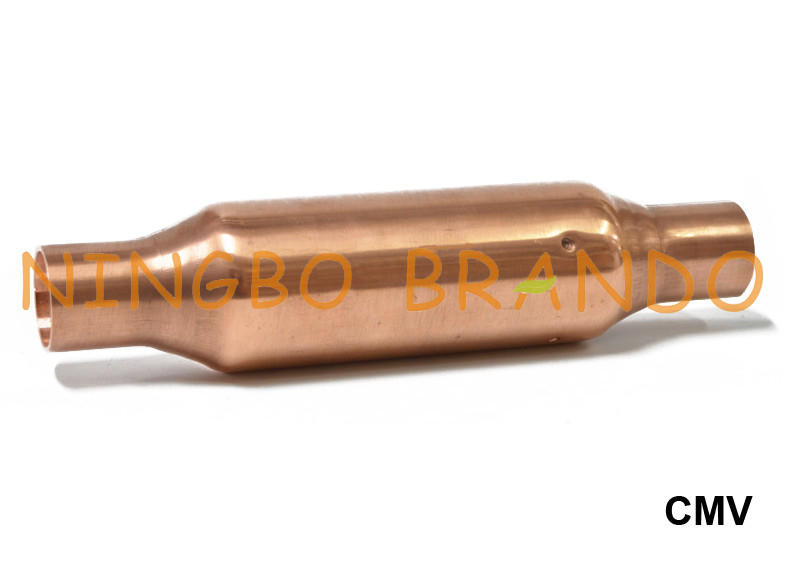

Mueller Type Refrigeration Magnetic Check Valve 1/4'' to 3 1/8'' Solder
Magnetic type refrigeration check valve is designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant to prevent backflow; the magnetic actuator guarantees a high reliability standard. When you install the refrigeration check valve in the system, it will rapidly balance the high pressure and low pressure inside of the compressor when the compressor stops working, when it reaches balance, then the refrigerants won't flow until the air conditioning or the refrigeration unit restarts.
Technical Data of CMV Series Magnetic Check Valve:
| Model |
Connection Size (ODF) |
Max Working Presure
(bar)
|
Cv Value | Max. Internal Leak |
| CMV-4S | 1/4'' | 55 | 0.7 | <2.3 ml/min |
| CMV-6S | 3/8'' | 55 | 1.2 | <2.3 ml/min |
| CMV-8S | 1/2'' | 48 | 2.7 | <3.3 ml/min |
| CMV-10S | 5/8'' | 48 | 3.3 | <3.3 ml/min |
| CMV-12S | 3/4'' | 48 | 7.2 | <6.6 ml/min |
| CMV-14S | 7/8'' | 48 | 8.0 | <6.6 ml/min |
| CMV-18S | 1 1/8'' | 48 | 13.2 | <13.1 ml/min |
| CMV-22S | 1 3/8'' | 48 | 18.9 | <13.1 ml/min |
| CMV-26S | 1 5/8'' | 48 | 27.8 | <19.7 ml/min |
| CMV-34S | 2 1/8'' | 48 | 49.9 | <19.7 ml/min |
| CMV-42S | 2 5/8'' | 48 | 61.9 | <26.2 ml/min |
| CMV-50S | 3 1/8'' | 45 | 64.1 | <26.2 ml/min |
Main Dimension of CMV Series Magnetic Check Valve:
| Model | Connection Size | Dimension | ||||||
| inch | mm | A | B | D | ||||
| inch | mm | inch | mm | inch | mm | |||
| CMV-4 | 1/4'' | 6 | 4.02 | 102 | 0.88 | 22 | 0.34 | 9 |
| CMV-6 | 3/8'' | 10 | 4.02 | 102 | 0.88 | 22 | 0.34 | 9 |
| CMV-8 | 1/2'' | 13 | 5.18 | 131 | 1.13 | 29 | 0.41 | 10 |
| CMV-10 | 5/8'' | 16 | 5.18 | 131 | 1.13 | 29 | 0.53 | 13 |
| CMV-12 | 3/4'' | 19 | 7.04 | 179 | 1.63 | 41 | 0.65 | 17 |
| CMV-14 | 7/8'' | 22 | 7.04 | 179 | 1.63 | 41 | 0.78 | 20 |
| CMV-18 | 1 1/8'' | 29 | 8.43 | 214 | 2.13 | 54 | 0.94 | 24 |
| CMV-22 | 1 3/8'' | 35 | 9.41 | 239 | 2.63 | 67 | 1.00 | 25 |
| CMV-26 | 1 5/8'' | 41 | 10.55 | 268 | 3.13 | 79 | 1.12 | 28 |
| CMV-34 | 2 1/8'' | 54 | 12.06 | 306 | 3.63 | 92 | 1.37 | 35 |
| CMV-42 | 2 5/8'' | 67 | 13.05 | 331 | 4.13 | 105 | 1.50 | 38 |
| CMV-50S | 3 1/8'' | 79 | 13.05 | 331 | 4.13 | 105 | 1.69 | 43 |
Cross Reference of Refrigeration Magnetic Check Valves:
| MUELLER | EMERSON | HENRY | SUPERIOR |
| CMV-4S | ACK-4 | MS-4 | 900MA-4S |
| CMV-6S | ACK-6 | MS-6 | 900MA-6S |
| CMV-8S | ACK-8 | MS-8 | 900MA-8S |
| CMV-10S | ACK-10 | MS-10 | 900MA-10S |
| CMV-12S | ACK-12 | MS-12 | 900MA-12S |
| CMV-14S | ACK-14 | MS-14 | 900MA-14S |
| CMV-18S | ACK-18 | MS-18 | 900MA-11S |
| CMV-22S | ACK-22 | MS-22 | 900MA-13S |
| CMV-26S | ACK-26 | MS-26 | 900MA-15S |
| CMV-34S | ACK-34 | MS-34 | 900MA-21S |
| CMV-42S | ACK-42 | MS-42 | 900MA-25S |
| CMV-50S | / | / | / |
