| Product Name: | Filter Regulator Lubricator | Model: | AC1000, AC2000, AC2500, AC3000, AC4000, AC5000, AC5500, AC6000 |
|---|---|---|---|
| Fluid: | Air | Port Size: | M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'' |
| Filtering Grade: | 5 μm | Max Pressure: | 1.0Mpa (145Psi) |
| Proof Pressure: | 1.5Mpa (215Psi) | Recommended Lubricant: | ISO VG 32 Or Equivalent |
| Highlight: | Pneumatic FRL Unit,Air Filter Pressure Regulator Lubricator,SMC AC5000-06 FRL |
||

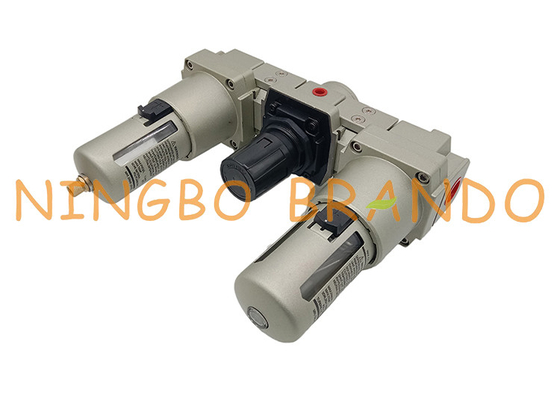

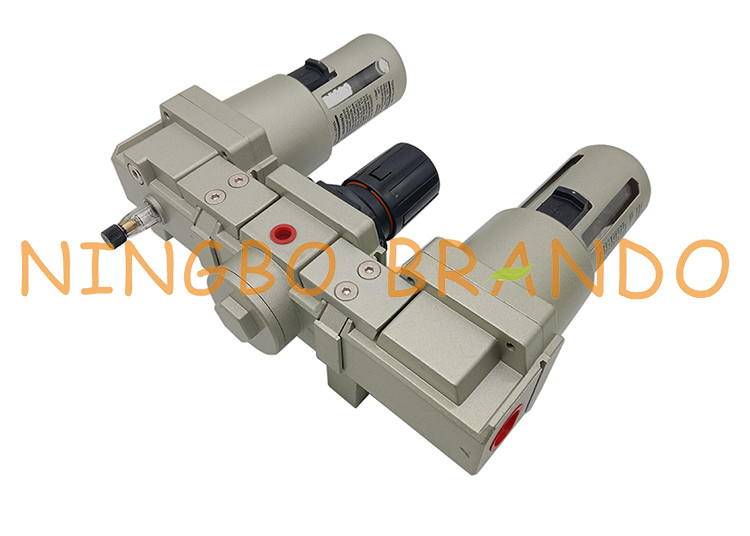

Pneumatic FRL Unit Air Filter Pressure Regulator Lubricator AC5000-06
Check out the air line filter, regulator and lubricator modular combinations at BRANDO. The 2-pc. units combine the filter/regulator with a lubricator, and 3-pc. units consist of a filter, regulator and lubricator. Combinations include mounting brackets and pressure gauges. Choose from 2-pc. and 3-pc. modular units with polycarbonate, die cast zinc and metal bowls. Find the type and size you need in a high-quality filter, regulator and lubricator modular combination. Shop BRANDO today!
Specification of AC series Filter Regulator Lubricator:
| Model | AC1000 | AC200 | AC2500 | AC3000 | AC4000 | AC4000-06 | AC5000 | AC5500 | AC6000 | |
|
Combination Equipment |
Filter | AF1000 | AF2000 | AF2500 | AF3000 | AF4000 | AF4000-06 | AF5000 | AF6000 | AF6000 |
| Regulator | AR1000 | AR2000 | AR2500 | AR3000 | AR4000 | AR4000-06 | AR5000 | AR5000 | AR6000 | |
| Lubricator | AL1000 | AL2000 | AL2500 | AL3000 | AL4000 | AL4000-06 | AL5000 | AL6000 | AL6000 | |
| Port Size | M5 |
1/8'' 1/4'' |
1/4'' 3/8'' |
1/4'' 3/8'' |
1/4'' 3/8'' 1/2'' |
3/4'' |
3/4'' 1'' |
1'' | 1'' | |
| Gauge Port Size | 1/16'' | 1/8'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | 1/4'' | 1/4'' | 1/4'' | |
| Fluid | Air | |||||||||
| Proof Pressure | 1.5 MPa | |||||||||
| Max Operating Pressure | 1.0 MPa | |||||||||
| Set pressure range | 0.05 to 0.7 MPa | 0.05 to 0.85 MPa | ||||||||
| Flow (L/MinANR)) | 90 | 500 | 1500 | 2000 | 4000 | 4500 | 5000 | 6000 | 6000 | |
| Ambient And Fluid Temperature | -5 to 60 ℃ (Non-freezing) | |||||||||
| Filtration | 5μm | |||||||||
| Recommand Lubricant | Turbin oil class (ISO BG32) | |||||||||
| Bowl Material | Polycarbonate | |||||||||
| Construction/Regulator | Relieving style | |||||||||
Dimension of AC series Filter Regulator Lubricator:
Combinations of AC series Filter Regulator Lubricator:
