| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 4V130C-06, 4V130E-06, 4V130P-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Pneumatic Solenoid Valve | Valve Type: | 5 Way 3 Position |
|---|---|---|---|
| Voltage: | 220VAC, 110VAC, 24VAC, 24VDC, 12VDC | Working Pressure: | 0.15 To 0.8 MPa( 21-114 Psi) |
| Max. Frequency: | 5 Cycle/sec | Port Size: | In=Out=1/8'' |
| Body Material: | Aluminum Alloy | Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
| Highlight: | 4V130C-06 Pneumatic Solenoid Valve,5/3 Way Pneumatic Solenoid Valve,Airtac Pneumatic Valve 24V |
||

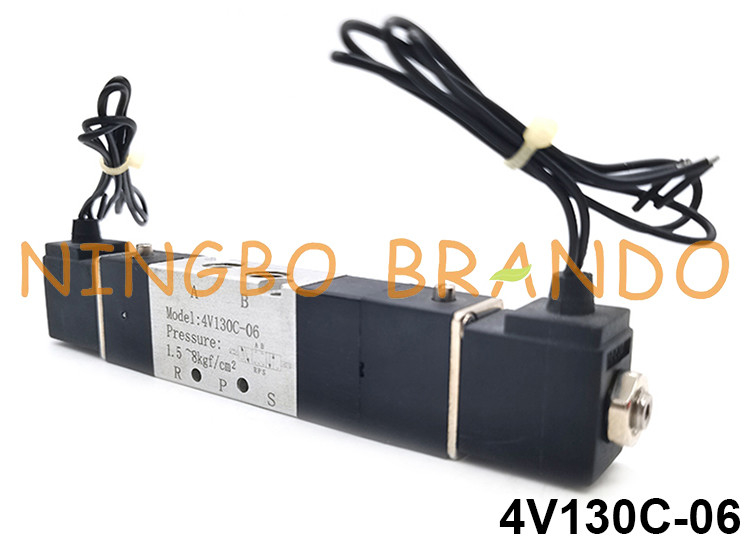

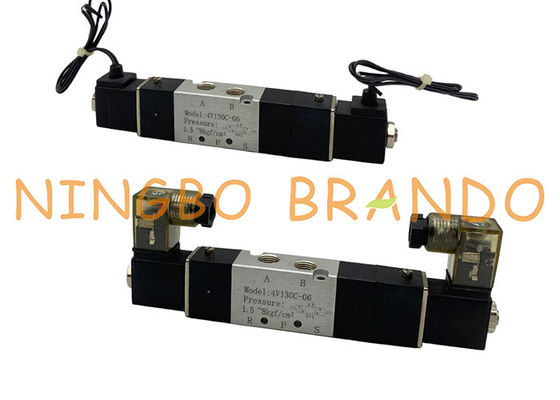

4V130C-06 5/3 Way Airtac Type Air Control Pneumatic Solenoid Valve 24V 110V 220V
With pneumatic valves, the configuration or valve type indicates how air is connected to the device and switched through the valve. This configuration has a strong influence on the device the valve is controlling and understanding this is critical for specifying the proper valve for the application.
Valve configuration symbols must be interpreted. The pneumatic symbol for a valve has three parts: actuation (how the valve is actuated), position (the number of positions and ports), and flow (how the air flows through the device). The actuation methods are on the left and right of the symbol and can be thought of as pushing the boxes left or right. The number of boxes indicates the number of positions — typically two or three. Flow of supply air or exhaust for each position is defined by the information in each box.
Technical Data:
|
Model
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
4V110-08
4V120-08
|
4V130C-08
4V130E-08
4V130P-08
|
|
Fluid
|
Air(to be filtered by 40 μm filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=1/8''
|
In=Out=1/4''
|
||
|
Orifice Size
|
5.5 mm2 (Cv=0.31)
|
5.0 mm2 (Cv=0.28)
|
12.00 mm2 (Cv=0.67)
|
9.00 mm2 (Cv=0.50)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.2MPa
|
|||
|
Temperature ℃
|
5~50
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
5 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Main Dimension of 4V130C-06 Pneumatic Solenoid Valve:
Video of 4V130C-06 Pneumatic Solenoid Valve:
Production Video of Pneumatic Solenoid Valve:
