| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 2W800-80-A |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Solenoid Valve | Port Size: | 3'' |
|---|---|---|---|
| Pipe Connection: | Threaded | Orifice Size: | 80mm |
| Function: | 2 Way Normally Closed | Operation: | Direct Lift Diaphragm |
| Body Material: | Brass | Diaphragm Material: | NBR, EPDM, FKM |
| Working Medium: | Water, Air, Gas, Oil, Etc | Working Pressure Range: | 0 To 1 MPa |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Protection Class: | IP67, IP68 Waterproof |
| Highlight: | Waterproof Solenoid Valve 3'',Fountain Solenoid Valve 3'',IP68 Waterproof Solenoid Valve |
||

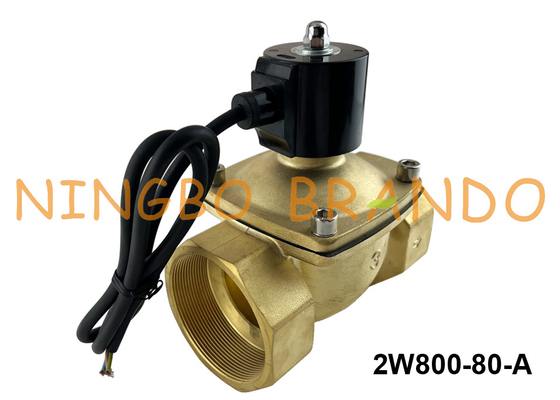

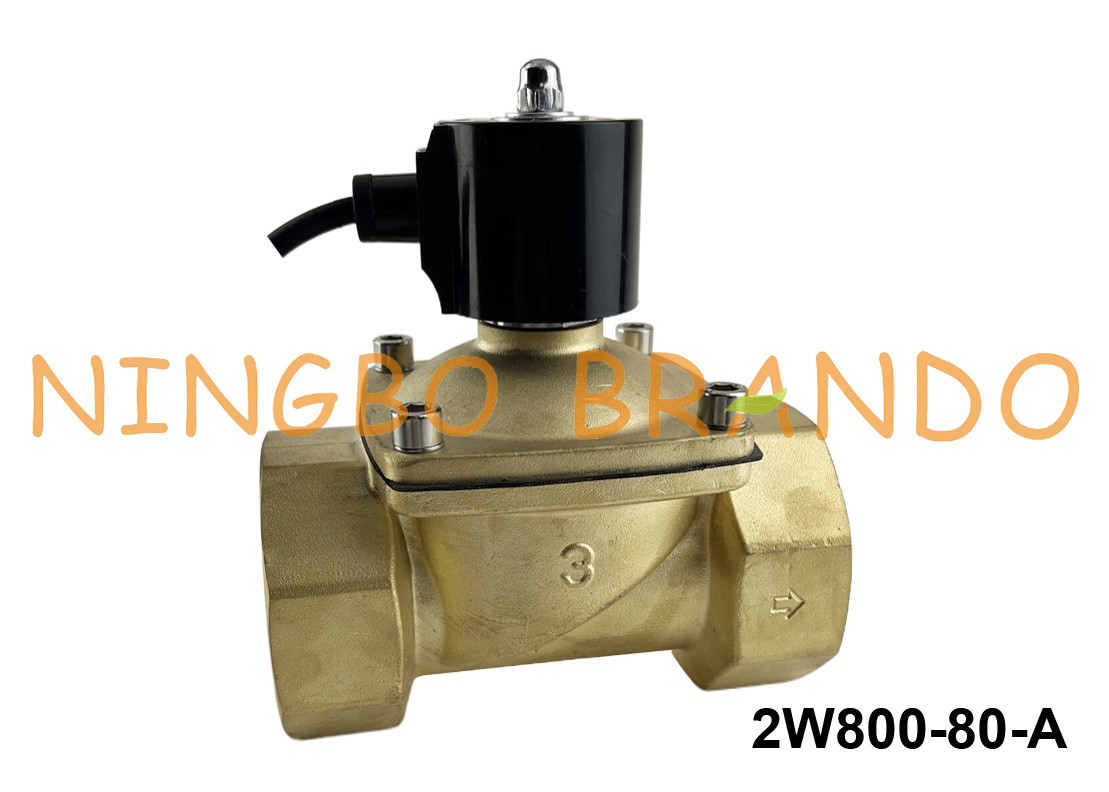

3'' IP68 Waterproof Water Fountain Brass Solenoid Valve 12V 24V 110V 220V
Product Features:
1. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 2 1/2'', 3''
2. Orifice Size: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm, 65mm, 80mm
3. Function: 2 Way Normally Closed
4. Operation: Direct Lift Diaphragm
5. Working Medium: Water, Air, Gas, Oil, etc
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Voltage: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc
9. Protection Class: IP67, IP68 Waterproof
10. Application Example: Water Fountain
Technical Data:
|
2W Series
(Brass)
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
2W650-65
|
2W800-80
|
|
2S Series
(Stainless Steel)
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
2S650-65
|
2S800-80
|
|
Orifice Size (mm)
|
15
|
20
|
25
|
35
|
40
|
50
|
65
|
80
|
|
Port Size (inch)
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
2-1/2''
|
3''
|
|
Medium
|
Water, Air, Oil, Gas
|
|||||||
|
Action
|
Direct Lift Diaphragm
|
|||||||
|
Function
|
2 Way Normally Closed, 2 Way Normally Open
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure Range
|
0 to 1 MPa
|
|||||||
|
Temperature Range
|
-5 to +80℃ (NBR)
-5 to +120℃ (EPDM) -10 to +150℃ (FKM) |
|||||||
Dimension:
|
2S Series
(Stainless Steel)
|
2W Series
(Brass)
|
A
|
B
|
C
|
D
|
K
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
|
2S650-65
|
2W650-65
|
169
|
125
|
214
|
163
|
2-1/2''
|
|
2S800-80
|
2W800-80
|
174
|
125
|
224
|
183
|
3''
|
