DIN 43650 is now known as the EN 175301-803 standards, which refer to these types of connectors. Other names for DIN 43650 connectors include MPM or sugarcube connectors. These solenoid valve connectors come in three versions: Form A, Form B or Form C. They have met various overvoltage protection requirements and are made to function within certain voltage limits.

DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.

Dimension & Data of Solenoid Coil Connector:

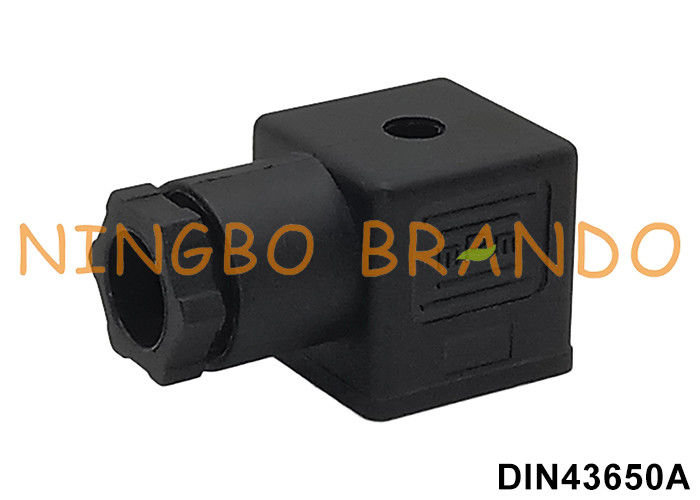

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

FAQ:

What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.

What is IP65?

Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures - IP Code), specifying the environmental protection the enclosure provides.

The IP rating normally has two (or three) numbers:

1) Protection from solid objects or materials

2) Protection from liquids (water)

3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529)
