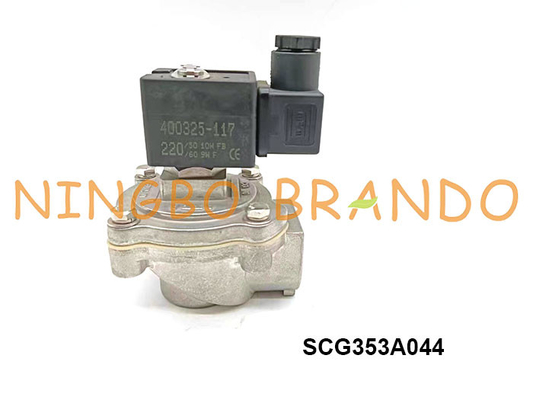

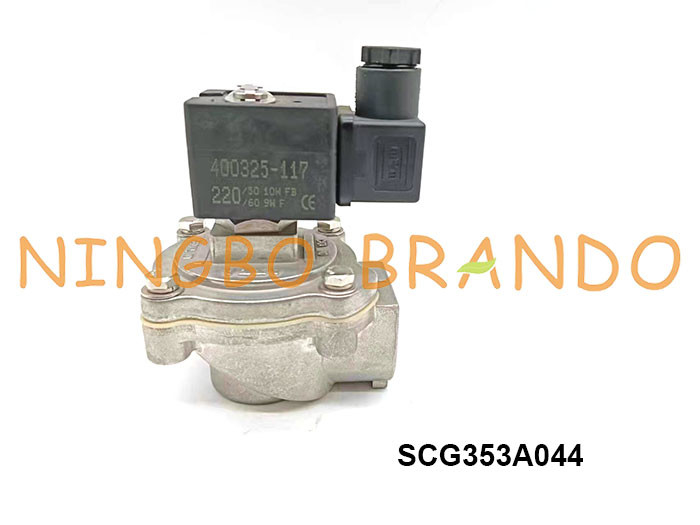

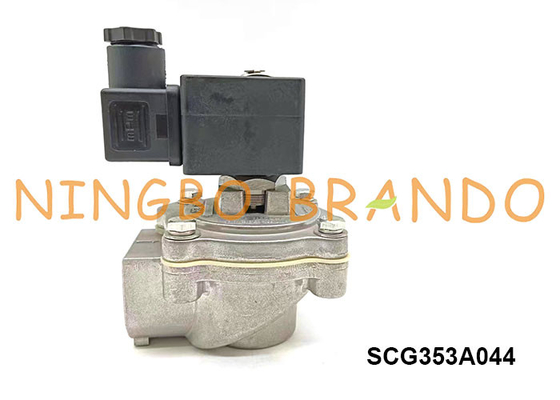

SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: SCG353A044
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Port Size: G 1" Nornimal Size: 25mm
Number Of Diaphragm: 1 Action Type: Pilot Operated
Valve Type: Right Angle Threaded Valve Body Material: Aluminum Alloy
Power: Solenoid Structure: Diaphragm
Application: Dust Collector Voltage: AC220V, AC110V, AC24V, DC24V
Highlight:

SCG353A044 Pulse Jet Valve

,

Threaded Right Angle Pulse Valve

,

Pulse Valve 1''

SCG353A044 1'' Dust Collector Diaphragm Valve Right Angle 353 Series

Products Description
ASCO Type 353 Series high flow die-casting aluminum bodies, Integral compression fittings for fast, easy, secure installation. It's specially designed for reverse jet type dust collector systems. Quick mount connection eliminates thread cutting and sealing. Valves may be mounted in any position. The concept of pulse -jet dust collection system is basic: dirty air goes in, dust or particulate gets removed, and clean air comes out.
Main Dimension
                    SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse 0



SCG353A044

353 Series Pulse Jet Valves
Model
SCG353A043


SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 0.85 MPa
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle Type

Our Production
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse 1
Packing&Shipping
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse 2



Internal Box

SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse 3



Carton

SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse 4



Pallet

Technical Data:

Model No SCG353A044
Port Size  G1 Inch
Working Pressure  0.3~0.8Mpa
Working Temperature  -5~+55℃
Working Medium  Air
Relative Humidity ≤85%
Protection Class  IP65
Service Life Over 1000000 times
Voltage  AC220V, AC110V, AC24V, DC24V
Special voltages and specifications , please contant us.







Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel


OEM ODM Service



Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing




Welcome to your any question and inquiry!
