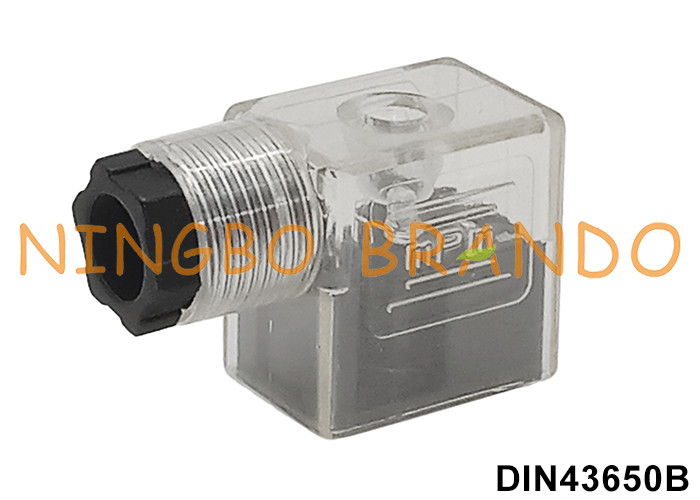

2P+E MPM Transparent Solenoid Valve Connector With LED Indicator

2P+E MPM Transparent Solenoid Valve Connector With LED Indicator

Brando offer a range of rectangular DIN 43650 Connectors. Our DIN 43650 Connectors include form A, B and C. Brando DIN 43650 Connectors are typically used in hydraulic, pneumatic and electro-magnetic actuators as well as sensors. These rugged rectangular connectors fulfill the demands of hard practical daily work in every form (Types A/B/C).

Key features for the connector:

1. Available in 2+PE and 3+PE.
2. Available as a field attachable or as moulded cable cordets.
3. Easy to assemble due to the large cable connection space - PG9, PG11, M16.
4. Protection class up to IP68.
5. Available with or without electronic insert to include LED'S, varistors and diodes.
6. Accommodating various cable lengths.

Dimension & Data of Solenoid Coil Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

FAQ:

What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.

What are DIN 43650 solenoid connectors used for?
DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.
