Focus on your demands
Offer you best solution
Sales & Support:
 |
| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BC-16-2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 5000pcs per month |
| Product Name: | Pulse Controller | Channel Number: | 16 |
|---|---|---|---|
| Input Voltage: | 220VAC | Output Voltage: | 220VAC |
| Pulse Width: | 0.01 To 99.99s | Pulse Interval: | 1 To 9999s |
| Cycle Interval: | 1 To 6000s | ||
| Highlight: | Pulse Controller 16 Lines,Pulse Controller For Dust Collector,Pulse Jet Controller |
||

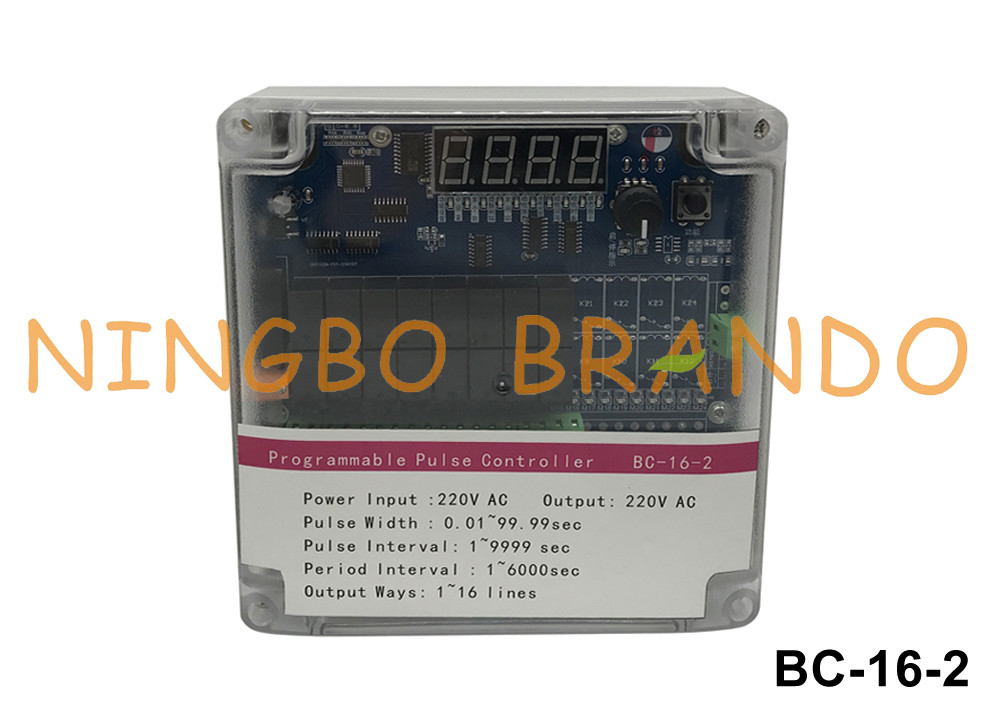

220VAC Input 220VAC Output 16 Lines Pulse Controller For Dust Collector
Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.
1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;
Technical Data:
| Model No | BC-08 | BC-10 | BC-12 | BC-16 | BC-20 | BC-24 | BC-30 | BC-36 | BC-52 | BC-64 |
| Channel No | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 52 | 64 |
| Input Voltage | 24VDC, 110VAC, 220VAC, other can be customized | |||||||||
| Output Voltage | 24VDC, 24VAC, 110VAC, 220VAC, other can be customized | |||||||||
| Pulse Width | 0.1 to 999.9 Seconds | |||||||||
| Pulse Interval | 1 to 9999 Seconds | |||||||||
| Cycle Interval | 1 to 9999 Seconds | |||||||||
| Working Environment | 1. -25°C to +55°C 2. The relative humidity of the air does not exceed 85% 3. No serious corrosion gas and conductive dust 4. No violent vibration or shock |
|||||||||
Detailed Images:
Controller Setting:
Controller Wiring:
Our Production:
Related Products:
|
|
|
|
| Pulse Valve | Solenoid Coil | Solenoid Armature | Diaphragm |
