| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DIN43650AT11 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Connector | DIN43650 Type: | DIN43650A |
|---|---|---|---|
| Cable Entry: | PG11 | Contact Distance: | 18mm |
| Pole Number: | 2P+E | Protection Class: | IP65 |
| Working Voltage: | AC, DC | Shell Color: | Transparent |
| Led Indicator Color: | Red | ||
| Highlight: | DIN43650A PG11 Connector,IP65 Solenoid Coil Connector,DIN43650A Connector With Led |
||

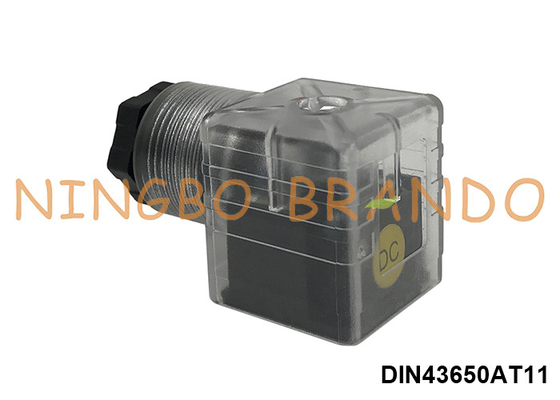

DIN43650A PG11 2P+E Solenoid Coil Connector With Led Indicator IP65 AC DC
DIN43650 connectors are popularly used in pneumatic, hydraulic or electromagnetic devices, including solenoid valves. Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
|
DIN43650 Type
|
DIN43650A
|
|
Cable Entry
|
PG11
|
|
Contact Distance
|
18mm
|
|
Pole Number
|
2 Poles + Ground
|
|
Voltage Rating
|
0-250V AC/DC
|
|
Current Rating
|
10A
|
|
Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Protection Class
|
IP65
|
Main Dimension:
