Eaton Type Hydraulic Solenoid Coil C16H12/19 C16H24/19 C16H12/29 C16H24/29

Eaton Type Hydraulic Solenoid Coil C16H12/19 C16H24/19 C16H12/29 C16H24/29

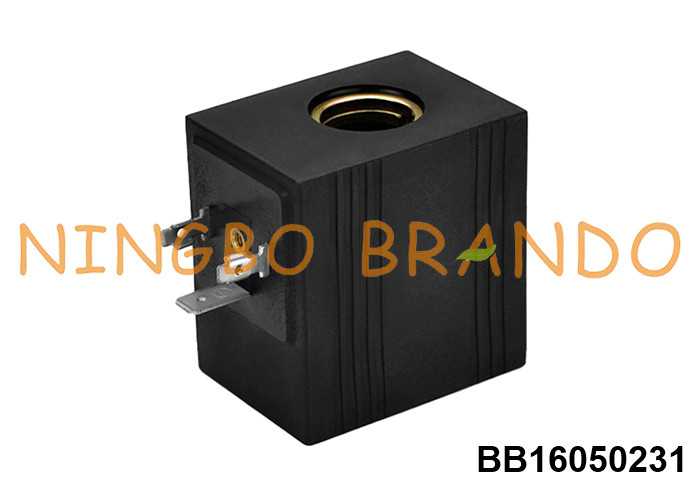

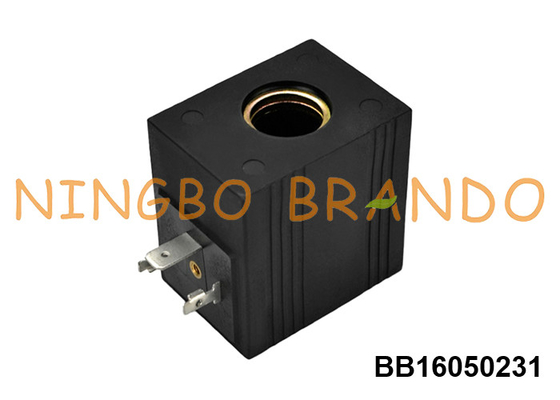

This C16H solenoid coil is popularly used in hydraulic solenoid valves. The reference number is C16H12/19, C16H24/19, C16H12/29, C16H24/29, C16H12/37, C16H24/37, 400AA00003A, 400AA00004A, 400AA00005A, 400AA00006A. The standard voltage is 12VDC or 24VDC, the standard power is 19W, 29W or 37W, other voltages and powers can be customized as your request, DIN43650A connector, IP65 protection class. If you have any demands or questions, pls contact us!

Technical Data:

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

More Hydraulic Coils:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
