| Product Name: | Pneumatic Angle Seat Valve | Port Connection: | Flanged |
|---|---|---|---|
| Port Size: | DN15 | Body Material: | Stainless Steel 304 |
| Seal Material: | PTFE | Actuator Material: | Stainless Steel |
| Function: | Single Acting Normally Closed, Double Acting Normally Closed, Double Acting Normally Open | Working Medium: | Water, Air, Steam, Gas, Liquid, Etc |
| Medium Working Pressure: | 0 To 1.6 MPa | Medium Working Temperature: | -10 To +180 ℃ |
| Highlight: | Flanged Pneumatic Angle Seat Valve,Pneumatic Angle Seat Valve DN15,Pneumatic Angle Seat Valve Double Acting |
||

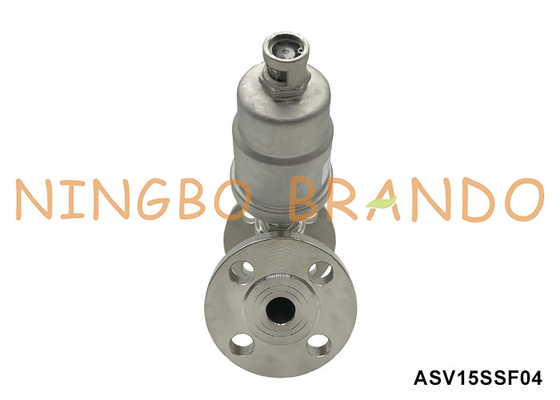

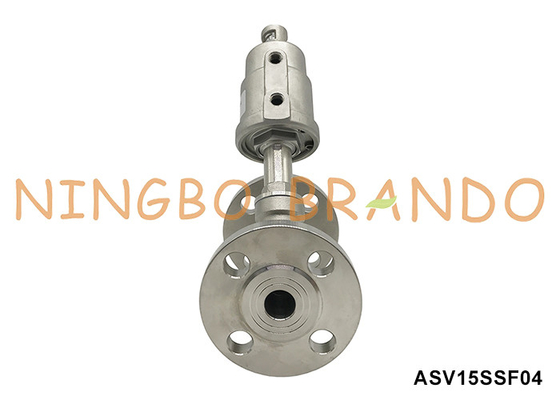

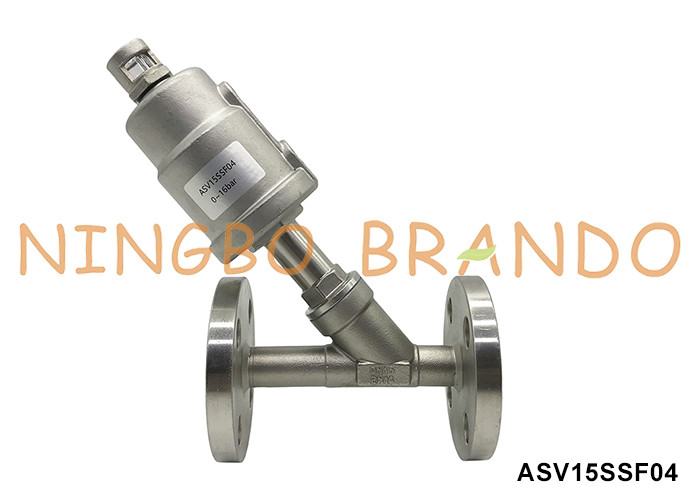

DN15 PN16 Flanged Port Pneumatic Angle Seat Valve Double Acting Normally Closed
Pneumatic angle seat valve is a 2/2 way pneumatically actuated valve that moves a piston actuator off its seat based on the pilot signal it receives. A separate pneumatic pilot valve controls the actuator that moves the valve piston up and down, opening or closing the valve. As the seat is positioned at an angle, it does not impede flow when the valve is fully open. It is widely used in various inductries to control air, water, steam, gas and liquids.
Technical Data:
|
Product Name
|
Pneumatic Angle Seat Valve
|
|
Port Size
|
1/2'' to 4''
|
|
Orifice Size
|
DN10 to DN100
|
|
Port Connection
|
Threaded, Flanged, Welded, Tri Clamp
|
|
Body Material
|
Stainless Steel 304, Stainless Steel 316
|
|
Seal Material
|
PTFE
|
|
Actuator Material
|
Plastic, Stainless Steel
|
|
Function
|
Single Acting Normally Closed
Double Acting Normally Closed
Double Acting Normally Open
|
|
Working Medium
|
Water, Air, Steam, Gas, Liquid, etc
|
|
Medium Temperature
|
-10 to +180℃
|
|
Ambient Temperature
|
-10 to +60℃
|
|
Working Pressure
|
0 to 1.6 MPa
|
Main Dimension:
|
DN Size
|
L
|
D
|
D1
|
D2
|
H
|
A
|
B
|
N-Φd
|
Actuator
|
|
DN15
|
131
|
90
|
65
|
42.5
|
157
|
180
|
61.5
|
4-Φ14
|
50
|
|
DN20
|
136
|
100
|
75
|
53.5
|
161
|
188
|
61.5
|
4-Φ14
|
50
|
|
DN25
|
140
|
110
|
85
|
63
|
173
|
198
|
61.5
|
4-Φ14
|
50
|
|
DN32
|
150
|
130
|
100
|
74
|
198
|
220
|
75.5
|
4-Φ18
|
63
|
|
DN40
|
180
|
140
|
110
|
82.5
|
205
|
236
|
75.5
|
4-Φ18
|
63
|
|
DN50
|
195
|
154
|
125
|
96
|
208
|
245
|
75.5
|
4-Φ18
|
63
|
|
DN65
|
230
|
185
|
145
|
115
|
315
|
320
|
126
|
4-Φ18
|
80
|
|
DN80
|
250
|
195
|
160
|
130
|
330
|
330
|
126
|
8-Φ18
|
100
|
|
DN100
|
280
|
215
|
180
|
150
|
350
|
360
|
156
|
8-Φ18
|
100
|
|
DN Size
|
L
|
D
|
D1
|
D2
|
H
|
A
|
B
|
N-Φd
|
Actuator
|
|
DN15
|
131
|
90
|
65
|
43
|
155
|
185
|
66.5
|
4-Φ14
|
50
|
|
DN20
|
131
|
100
|
75
|
53.8
|
160
|
185
|
66.5
|
4-Φ14
|
50
|
|
DN25
|
141
|
110
|
85
|
63.5
|
197
|
220
|
82.5
|
4-Φ14
|
63
|
|
DN32
|
150
|
130
|
100
|
74
|
195
|
225
|
82.5
|
4-Φ18
|
63
|
|
DN40
|
178
|
140
|
110
|
83.5
|
203
|
240
|
82.5
|
4-Φ18
|
63
|
|
DN50
|
195
|
154
|
125
|
97
|
229
|
275
|
103
|
4-Φ18
|
80
|
|
DN65
|
230
|
185
|
145
|
115
|
315
|
320
|
126
|
4-Φ18
|
100
|
|
DN80
|
250
|
195
|
160
|
130
|
330
|
330
|
126
|
8-Φ18
|
100
|
|
DN100
|
280
|
215
|
180
|
150
|
350
|
360
|
156
|
8-Φ18
|
125
|
