| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4A230C-06 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 3 Position | Port Size: | In=Out=Exhaust=1/8'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8 MPa | Max Pressure Resistance: | 1.5 MPa |
| Body Material: | Aluminum Alloy | Max Frequency: | 5 Cycle/ Second |
| Acting: | Exterior Control | ||
| Highlight: | 4A230C-06 Pneumatic Air Pilot Valve,4A230E-06 Pneumatic Air Pilot Valve,AirTac Type 4A230C-06 |
||

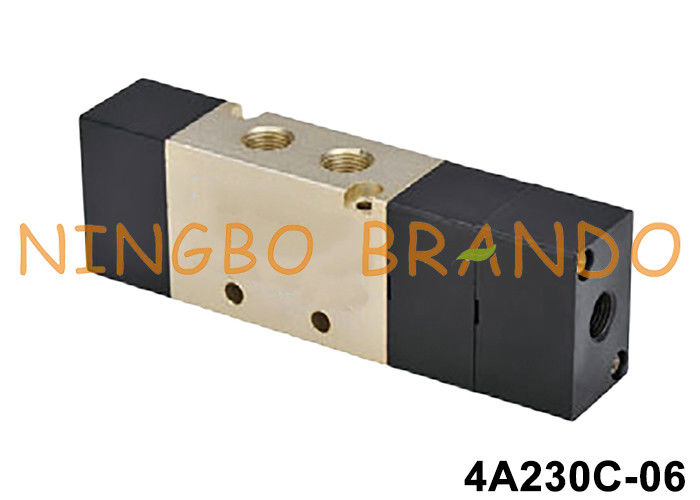

4A230C-06 4A230E-06 4A230P-06 Pneumatic Air Pilot Valve 1/8''
Product Features of 4A series Air Pilot Valves:
1. Structure in sliding column mode: good tightness and sensitive reaction.
2. Three position air valves have three kinds of central function for your choice.
3. Double air control valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. Integrate with the manifold to save installation space.
Technical Data of 4A200 Series Pneumatic Air Pilot Valve:

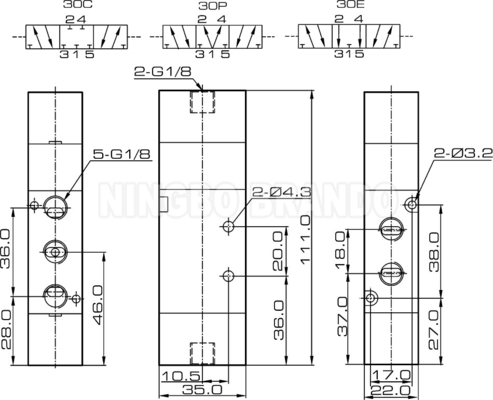

Dimension of 4A230C-06 Pneumatic Air Pilot Valve:
Production Video of BRANDO Pneumatic Valves:
