| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 135 |
| Minimum Order Quantity: | 4pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Pulse Valve | Port Size: | 4'' |
|---|---|---|---|
| Operation: | Pilot Piston Operated | Max Operating Pressure: | 1000kPa |
| Max Operating Temperature: | 125℃ | Voltage: | 24VDC, 110VAC, 220VAC |
| Ref No: | V1614718-0100, V1614718-0200, V1614718-0300 V1614718-0400, V1614718-0500 | ||
| Highlight: | Optipow 135 Pulse Jet Valve,V1614718 Pulse Jet Valve,Alstom Optipow Type Piston Pulse Valve |
||

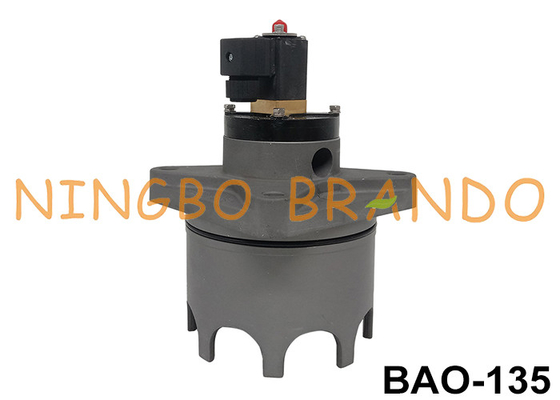

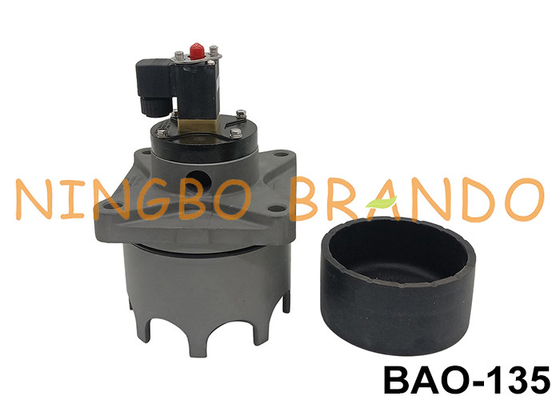

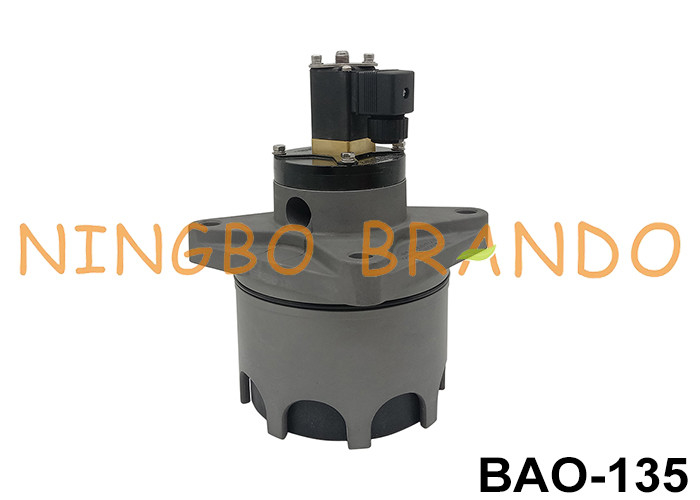

4'' Alstom Optipow Type 135 V1614718 Pulse Jet Valve Piston Type
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in dust collector, controlled by the electric signals from a pulse controller. Pulse valve can be integral pilot type or remote pilot type diaphragm valve, specially designed in dust collector systems in cement, ceramics, paint, feed thermal power plants, concrete plants, detergent, glass, iron and steel industry, etc.
Different pulse jet valve types:
1. Threaded Type
2. Fixed Nut Type
3. Flanged Type
4. Embedded Type
5. Straight Through Type
Technical Data:
|
Integral Pilot
BRANDO Model
|
BAO-105
|
BAO-135
|
|
Remote Pilot
BRANDO Model
|
RBAO-105
|
RBAO-135
|
|
Port Size
|
3''
|
4''
|
|
Operation
|
Piston Pilot Operated
|
|
|
Max Working Pressure
|
1000 kPa
|
|
|
Max Working Temperature
|
125 ℃
|
|
|
Voltage
|
24VDC, 110VAC, 220VAC
|
|
BAO-135 Dimension:
