| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DW1 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 to 10 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Solenoid Valve | Port Size: | 1/8'', 1/4'' |
|---|---|---|---|
| Orifice Size: | 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm | Body Material: | Stainless Steel 316 |
| Seal Material: | PTFE | Working Medium: | Cryogenic Liquids, Liquid Nitrogen, Liquid Carbon Dioxide, Liquid Oxygen, Etc |
| Medium Temperature: | -196 To +110℃ | Working Pressure: | 0 To 10 Bar |
| Function: | 2 Way Normally Closed | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Highlight: | Ultra Cryogenic Solenoid Valve,-196℃ Solenoid Valve,Low Temperature Solenoid Valve |
||

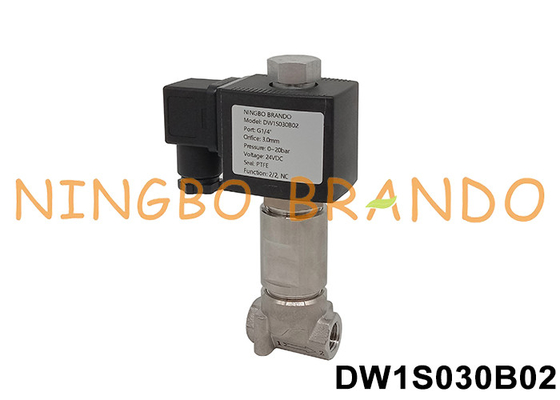

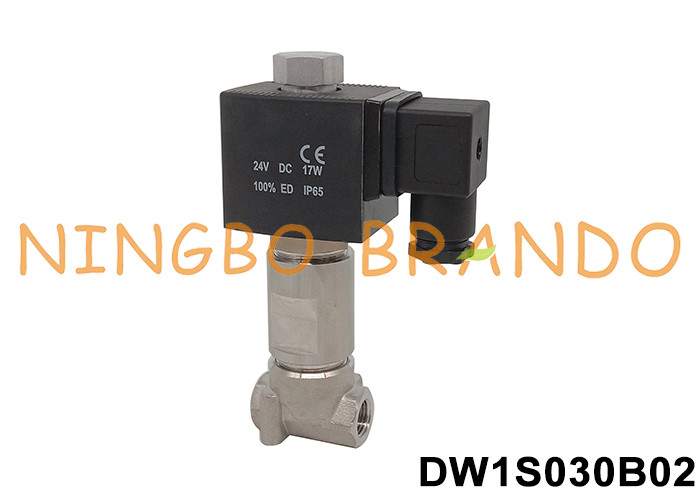

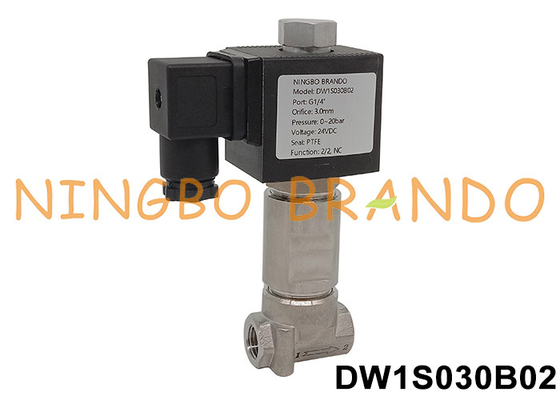

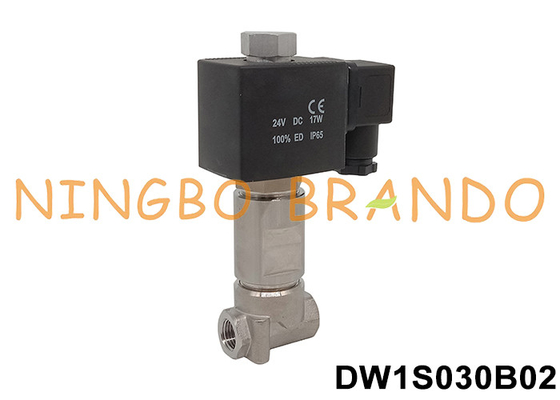

-196℃ Ultra Cryogenic Solenoid Valve For Liquid Nitrogen 1/8'' 1/4''
Product Features:
1. Working Medium: Cryogenic Liquids, Liquid Nitrogen, Liquid Carbon Dioxide, Liquid Oxygen, etc
2. Working Pressure: 0 to 40 bar
3. Medium Temperature: -196 to +110℃
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm
6. Body Material: Stainless Steel 316
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
Port
|
Orifice
|
Cv
|
Min Working Pressure
(bar)
|
Max Working Pressure
(bar)
|
Body
|
Seal
|
Function
|
|
|
AC
|
DC
|
||||||||
|
DW1S020B01
|
1/8''
|
2mm
|
0.14
|
0
|
40
|
35
|
SS316
|
PTFE
|
2 Way NC
|
|
DW1S025B01
|
2.5mm
|
0.23
|
0
|
30
|
25
|
||||
|
DW1S030B01
|
3mm
|
0.3
|
0
|
25
|
20
|
||||
|
DW1S040B01
|
4mm
|
0.6
|
0
|
10
|
8
|
||||
|
DW1S050B01
|
5mm
|
0.65
|
0
|
5
|
3
|
||||
|
DW1S060B01
|
6mm
|
0.8
|
0
|
3
|
2
|
||||
|
DW1S020B02
|
1/4''
|
2mm
|
0.14
|
0
|
40
|
35
|
|||
|
DW1S025B02
|
2.5mm
|
0.23
|
0
|
30
|
25
|
||||
|
DW1S030B02
|
3mm
|
0.3
|
0
|
25
|
20
|
||||
|
DW1S040B02
|
4mm
|
0.6
|
0
|
10
|
8
|
||||
|
DW1S050B02
|
5mm
|
0.65
|
0
|
5
|
3
|
||||
|
DW1S060B02
|
6mm
|
0.8
|
0
|
3
|
2
|
||||
Main Dimension:
