M/D25SHT Diaphragm For AUTEL Pulse Valve AE1825B AE1825R AE2825B AE2825R

M/D25SHT Diaphragm For AUTEL Pulse Valve AE1825B AE1825R AE2825B AE2825R

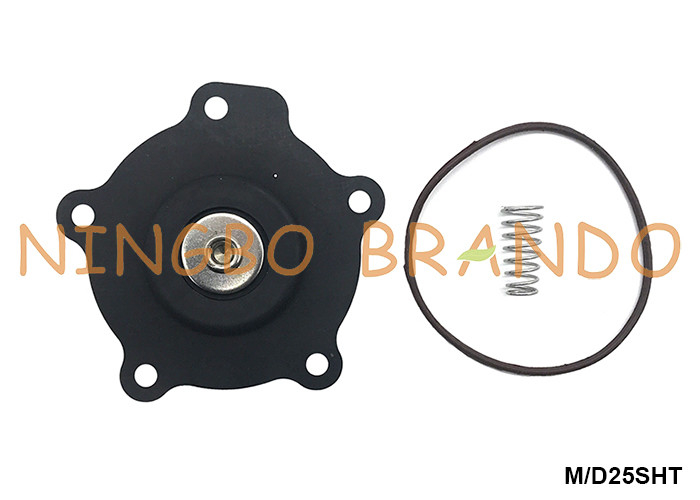

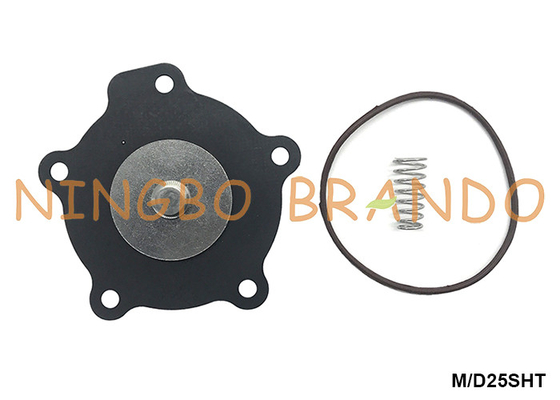

This M/D25SHT diaphragm is used in 1'' AUTEL pulse valves like AE1825B, AE2825B, AE1825R, AE2825R. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM, etc
2. Seat Material: Nylon, NBR, EPDM, FKM, PTFE, PEEK, etc
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing

Main Dimension:

Ordering Code:

Our Production:

Related Products:

Pulse Valve	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
