| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | QTY-50 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 5 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Pneumatic Regulator | Fluid: | Air |
|---|---|---|---|
| Port Size: | G2'' | Working Pressure: | 0.5 To 10 Bar |
| Highlight: | Pneumatic Regulator QTY-50,Pneumatic Air Regulator,Pneumatic Pressure Reducing Valve |
||

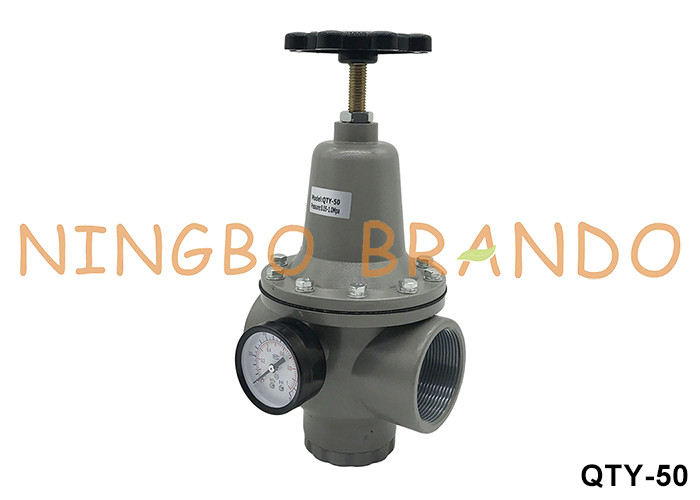

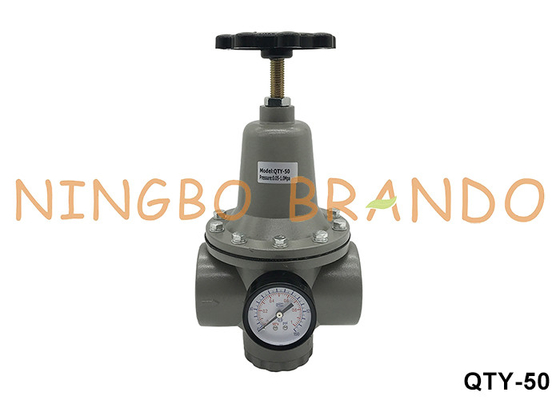

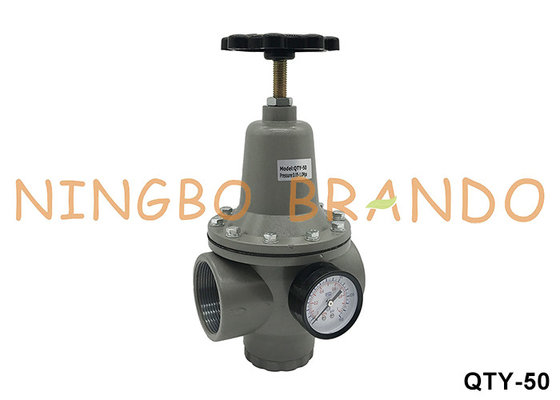

QTY-50 2'' 1 MPa Pneumatic Air Regulator Pressure Reducing Valve With Gauge
Technical Data:
|
Model No
|
QTY-08
|
QTY-10
|
QTY-15
|
QTY-20
|
QTY-25
|
QTY-35
|
QTY-40
|
QTY-50
|
|
Port Size
|
G1/4''
|
G3/8''
|
G1/2''
|
G3/4'' |
G1''
|
G1-1/4''
|
G1-1/2''
|
G2''
|
|
Working Medium
|
Air
|
|||||||
|
Working Pressure
|
0.5 to 10 bar
|
|||||||
|
Working Temperature
|
-5 to 60ºC
|
|||||||
|
Valve Type
|
With Overflow
|
|||||||
Main Dimension:
|
Model No
|
Port
|
A
|
B
|
D
|
D1 | D2 | D3 | D4 |
L0
|
L1
|
L2
|
L3 |
E
|
L max.
|
|
QTY-08
|
G1/4''
|
74
|
64
|
80
|
44 | 60 | 52 | 60 |
20
|
57
|
70
|
8 |
70
|
180
|
|
QTY-10
|
G3/8''
|
74
|
64
|
80
|
44 | 60 | 52 | 60 |
20
|
57
|
70
|
8 |
70
|
180
|
|
QTY-15
|
G1/2''
|
74
|
64
|
80
|
44 | 60 | 52 | 60 |
20
|
57
|
70
|
8 |
70
|
180
|
|
QTY-20
|
G3/4''
|
106
|
105
|
120
|
60 | 97 | 52 | 90 |
30
|
77
|
108
|
9 |
85
|
240
|
|
QTY-25
|
G1''
|
106
|
105
|
120
|
60 | 97 | 52 | 90 |
30
|
77
|
108
|
9 |
85
|
240
|
|
QTY-35
|
G1-1/4''
|
133
|
100
|
120
|
64 | 97 | 52 | 90 |
40
|
110
|
108
|
9 |
95
|
275
|
|
QTY-40
|
G1-1/2''
|
133
|
100
|
120
|
64 | 97 | 52 | 90 |
35
|
110
|
108
|
9 |
90
|
275
|
|
QTY-50
|
G2''
|
133
|
100
|
120
|
64 | 97 | 52 | 90 |
35
|
110
|
108
|
9 |
90
|
275
|
