| Place of Origin: | Ningbo, China |
| Brand Name: | Brando |
| Model Number: | D1AWXX |
| Price: | Negotiation |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Actuating: | Headless | Type: | Wafer |
|---|---|---|---|
| Body Material: | Ductile Iron GGG45, WCB Carbon Steel | Disc Material: | DI Coated By Nickel, DI Coated By Nylon, SS304, SS316, SS316L, Dupex Stainless Steel 2205、2507、1.4469, Aluminum Bronze |
| Seat Material: | EPDM, HT-EPDM, Wear Resistance EPDM, NBR, PTFE, VITON, Silicone Rubber | Stem Material: | Carbon Steel, SS416, SS420, SS304, SS316, SS316L |
| Size: | DN25-DN1200 | Pressure: | 1.0MPa / 1.6MPa |
| Working Mediu: | Fresh Water, Waster Water, Sea Water, Air, Steam, Food, Pharmaceutical, Varieties Of Oil, Acid, Soda, Salt And So On | Temperature: | -10~120℃ |
| Highlight: | dn40 Butterfly Valve,Lug Type Butterfly Valve,Carbon Steel Butterfly Valve |
||

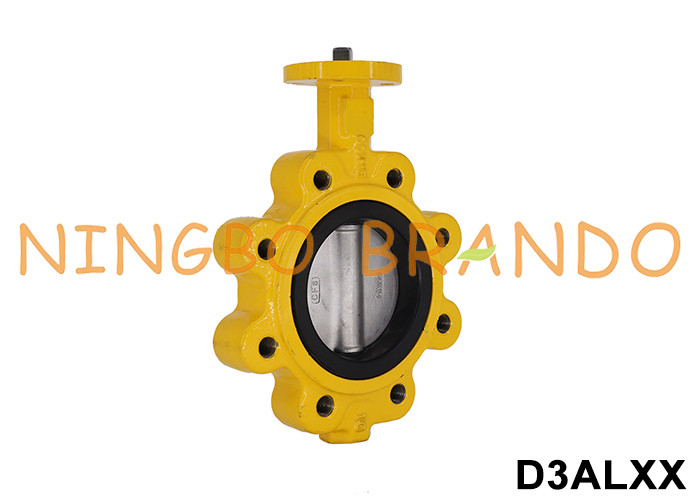

DN40 to DN800 Headless Lug Type Butterfly Valve with Hard-Backed Seat
Butterfly valves are often automated with pneumatic or electric actuators. This allows remote operation for a variety of reasons: savings in labor, plant safety, product quality assurance, and automatic sequencing, to name a few. The choice of actuator type depends on many factors, including availability of air supply, cycling requirements, condition of the environment, compatibility with the type of control operation, and cost. Positioners may be mounted on these valves if flow control is required.
Technical Data of Pneumatic Butterfly Valve:
| Product Name | Butterfly Valve |
| Actuation | Headless |
| Body Material | Ductile lron, Carbon Steel |
| Disc Material |
Ductile Iron coated by Nickel, Ductile Iron Coated by Nylon,
SS304, SS316, SS316L, Duplex Stainless Steel,
2205, 2507, 1.4469, 1.4529, Aluminum Bronze
|
| Seat Material |
NBR, EPDM, HT-EPDM, Wear Resistance EPDM,
PTFE, FKM, Silicone Rubber
|
| Stem Material | 45#Carbon Steel, SS416, SS420, SS304, SS316, SS316L |
| DN Size |
DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800
|
| Max Working Pressure | 10 bar or 16 bar |
| Working Medium | Wastewater, Water, Gas, Oil, Sea Water, Food, etc |

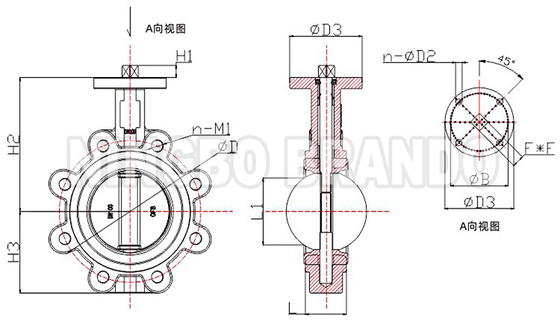

Main Dimension of Pneumatic Butterfly Valve:
| Size | PN10 | PN16 | ANSI 150 | JIS 10K | n-ΦD2 | ΦD3 | ΦB | H1 | H2 | H3 | F*F | L | L1 | ||||
| ΦD | n-Φd1 | ΦD | n-Φd1 | ΦD | n-Φd1 | ΦD | n-Φd1 | ||||||||||
| DN50 | 125 | 4-Φ19 | 125 | 4-Φ19 | 120.6 | 4-Φ19 | 120 | 4-Φ19 | 4-Φ7 | 72 | 50 | 11 | 130 | 70 | 11*11 | 42 | 32 |
| DN65 | 145 | 4-Φ19 | 145 | 4-Φ19 | 139.7 | 4-Φ19 | 140 | 4-Φ19 | 4-Φ7 | 72 | 50 | 11 | 143 | 80 | 11*11 | 45 | 47 |
| DN80 | 160 | 8-Φ19 | 160 | 8-Φ19 | 152.4 | 4-Φ19 | 150 | 8-Φ19 | 4-Φ7 | 72 | 50 | 11 | 155 | 94 | 11*11 | 45 | 65 |
| DN100 | 180 | 8-Φ19 | 180 | 8-Φ19 | 190.5 | 8-Φ19 | 175 | 8-Φ19 | 4-Φ10 | 92 | 70 | 14 | 170 | 108 | 14*14 | 52.1 | 91 |
| DN125 | 210 | 8-Φ19 | 210 | 8-Φ19 | 215.9 | 8-Φ22.4 | 210 | 8-Φ23 | 4-Φ10 | 92 | 70 | 17 | 190 | 122 | 17*17 | 55 | 112 |
| DN150 | 240 | 8-Φ23 | 240 | 8-Φ23 | 241.3 | 8-Φ22.4 | 240 | 8-Φ23 | 4-Φ10 | 92 | 70 | 17 | 210 | 134 | 17*17 | 56 | 146 |
| DN200 | 295 | 8-Φ23 | 295 | 12-Φ23 | 298.4 | 8-Φ22.4 | 290 | 12-Φ23 | 4-Φ12 | 125 | 102 | 22 | 243 | 167 | 22*22 | 61 | 194 |
| DN250 | 350 | 12-Φ23 | 355 | 12-Φ28 | 361.9 | 12-Φ25.4 | 355 | 12-Φ25 | 4-Φ12 | 125 | 102 | 22 | 282 | 203 | 22*22 | 66 | 242 |
| DN300 | 400 | 12-Φ23 | 410 | 12-Φ28 | 431.8 | 12-Φ25.4 | 400 | 16-Φ25 | 4-Φ14 | 150 | 125 | 27 | 310 | 241 | 27*27 | 77 | 292 |
| DN350 | 460 | 16-Φ23 | 470 | 16-Φ28 | 476.2 | 12-Φ28.4 | 445 | 16-Φ25 | 4-Φ14 | 150 | 125 | 27 | 353 | 267 | 27*27 | 77 | 325 |
| DN400 | 515 | 16-Φ28 | 525 | 16-Φ31 | 539.7 | 16-Φ28.4 | 510 | 16-Φ27 | 4-Φ18 | 175 | 140 | 40 | 380 | 310 | 36*36 | 87 | 380 |
| DN450 | 565 | 20-Φ28 | 585 | 20-Φ31 | 577.9 | 16-Φ31.8 | 565 | 20-Φ27 | 4-Φ18 | 175 | 140 | 40 | 430 | 331 | 36*36 | 105 | 428 |
| DN500 | 620 | 20-Φ28 | 650 | 20-Φ34 | 635 | 20-Φ31.8 | 620 | 20-Φ27 | 4-Φ22 | 210 | 165 | 50 | 468 | 378.5 | 46*46 | 130 | 474 |
| DN600 | 725 | 20-Φ31 | 770 | 24-Φ37 | 749.3 | 20-Φ35.1 | 730 | 24-Φ33 | 4-Φ22 | 210 | 165 | 50 | 562 | 463 | 46*46 | 152 | 573 |
