| Place of Origin: | Ningbo, China |
| Brand Name: | Brando |
| Model Number: | D1AWXX |
| Price: | Negotiation |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Actuating: | Headless | Type: | Wafer |
|---|---|---|---|
| Body Material: | Carbon Steel, SS304, SS316, SS316L | Disc Material: | WCB+PTFE, SS304+PTFE, SS316+PTFE, SS316L+PTFE, WCB+PFA, SS304+PFA, SS316+PFA, SS304, SS316, SS316L |
| Seat Material: | PTFE | Stem Material: | SS416, SS304, SS316, SS316L |
| Size: | DN40-DN700 | Pressure: | 1.0MPa / 1.6MPa |
| Working Mediu: | Water, Salt, Acid, Soda, Natural Gas, Alcohols, Oil, Food & Stem, Etc. | Temperature: | -20~150℃ |
| Highlight: | PTFE Lined Butterfly Valve,Wafer Type Butterfly Valve,PTFE Seat Butterfly Valve |
||

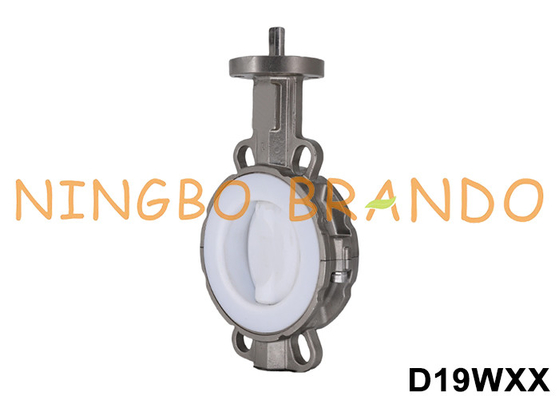

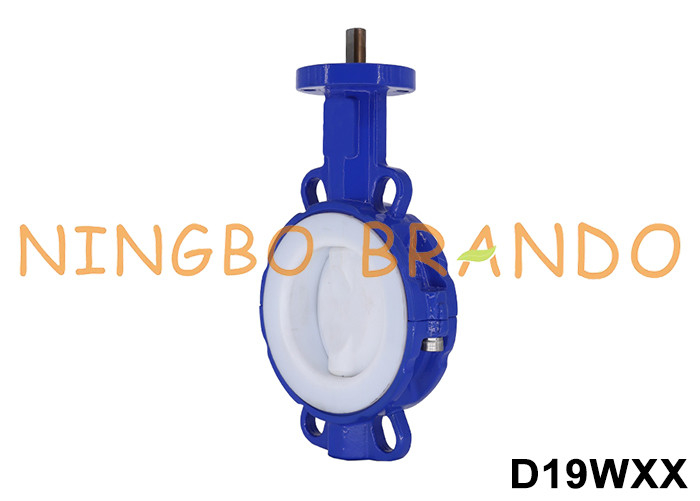

PTFE Lined Headless Wafer Type Butterfly Valve DN40 to DN700
Butterfly valves are often automated with pneumatic or electric actuators. This allows remote operation for a variety of reasons: savings in labor, plant safety, product quality assurance, and automatic sequencing, to name a few. The choice of actuator type depends on many factors, including availability of air supply, cycling requirements, condition of the environment, compatibility with the type of control operation, and cost. Positioners may be mounted on these valves if flow control is required.
Technical Data of Pneumatic Butterfly Valve:
| Product Name | Butterfly Valve |
| Actuation | Headless |
| Body Material | Carbon Steel, SS304, SS316, SS316L |
| Disc Material |
WCB+PTFE, SS304+PTFE, SS316+PTFE, SS316L+PTFE,
WCB+PFA, SS304+PFA, SS316+PFA, SS304, SS316, SS316L |
| Seat Material |
PTFE
|
| Stem Material | SS416, SS304, SS316, SS316L |
| DN Size |
DN40, DN50, DN65, DN80, DN100, DN125,
DN150, DN200, DN250, DN300, DN350, DN400, DN450,
DN500, DN600, DN700
|
| Max Working Pressure | 10 bar or 16 bar |
| Working Medium | Water, Salt, Acid, Soda, Natural Gas, Alcohols, Oil, Food & Stem, etc. |

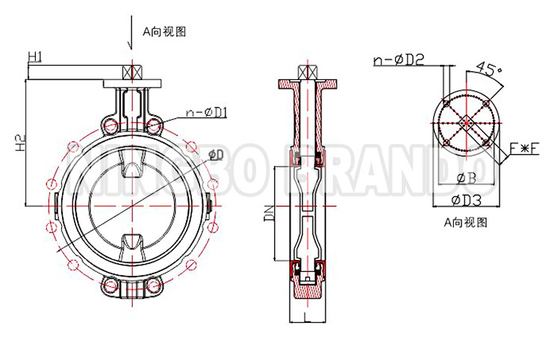

Main Dimension of Pneumatic Butterfly Valve:
| Size | PN10 | PN16 | ANSI 150 | JIS 10K | n-ΦD2 | ΦD3 | ΦB | H1 | H2 | F*F | L | ||||
| ΦD | n-Φd1 | ΦD | n-Φd1 | ΦD | n-Φd1 | ΦD | n-Φd1 | ||||||||
| DN40 | 110 | 4-Φ19 | 110 | 4-Φ19 | 98.5 | 4-Φ16 | 105 | 4-Φ19 | 4-Φ7 | 72 | 50 | 11 | 114.5 | 11*11 | 33 |
| DN50 | 125 | 4-Φ19 | 125 | 4-Φ19 | 120.6 | 4-Φ19 | 120 | 4-Φ19 | 4-Φ7 | 72 | 50 | 11 | 133 | 11*11 | 43 |
| DN65 | 145 | 4-Φ19 | 145 | 4-Φ19 | 139.7 | 4-Φ19 | 140 | 4-Φ19 | 4-Φ7 | 72 | 50 | 11 | 150 | 11*11 | 46 |
| DN80 | 160 | 8-Φ19 | 160 | 8-Φ19 | 152.4 | 4-Φ19 | 150 | 8-Φ19 | 4-Φ7 | 72 | 50 | 11 | 157 | 11*11 | 46 |
| DN100 | 180 | 8-Φ19 | 180 | 8-Φ19 | 190.5 | 8-Φ19 | 175 | 8-Φ19 | 4-Φ10 | 92 | 70 | 14 | 180 | 14*14 | 52 |
| DN125 | 210 | 8-Φ19 | 210 | 8-Φ19 | 215.9 | 8-Φ22.4 | 210 | 8-Φ23 | 4-Φ10 | 92 | 70 | 17 | 196 | 17*17 | 56 |
| DN150 | 240 | 8-Φ23 | 240 | 8-Φ23 | 241.3 | 8-Φ22.4 | 240 | 8-Φ23 | 4-Φ10 | 92 | 70 | 17 | 209 | 17*17 | 56 |
| DN200 | 295 | 8-Φ23 | 295 | 12-Φ23 | 298.4 | 8-Φ22.4 | 290 | 12-Φ23 | 4-Φ12 | 125 | 102 | 22 | 239 | 22*22 | 60 |
| DN250 | 350 | 12-Φ23 | 355 | 12-Φ28 | 361.9 | 12-Φ25.4 | 355 | 12-Φ25 | 4-Φ12 | 125 | 102 | 22 | 275 | 22*22 | 68 |
| DN300 | 400 | 12-Φ23 | 410 | 12-Φ28 | 431.8 | 12-Φ25.4 | 400 | 16-Φ25 | 4-Φ14 | 150 | 125 | 27 | 300 | 27*27 | 78 |
| DN350 | 460 | 16-Φ23 | 470 | 16-Φ28 | 476.2 | 12-Φ28.4 | 445 | 16-Φ25 | 4-Φ14 | 150 | 125 | 27 | 325 | 27*27 | 78 |
| DN400 | 515 | 16-Φ28 | 525 | 16-Φ31 | 539.7 | 16-Φ28.4 | 510 | 16-Φ27 | 4-Φ18 | 175 | 140 | 40 | 365 | 36*36 | 102 |
| DN450 | 565 | 20-Φ28 | 585 | 20-Φ31 | 577.9 | 16-Φ31.8 | 565 | 20-Φ27 | 4-Φ18 | 175 | 140 | 40 | 400 | 36*36 | 114 |
| DN500 | 620 | 20-Φ28 | 650 | 20-Φ34 | 635 | 20-Φ31.8 | 620 | 20-Φ27 | 4-Φ22 | 210 | 165 | 50 | 445 | 46*46 | 127 |
| DN600 | 725 | 20-Φ31 | 770 | 24-Φ36 | 749.3 | 20-Φ35.1 | 730 | 24-Φ33 | 4-Φ22 | 210 | 165 | 50 | 509 | 46*46 | 154 |
| DN700 | 840 | 24-Φ30 | 840 | 24-Φ36 | 863.6 | 28-Φ35.1 | 840 | 24-Φ33 | 8-Φ18 | 300 | 254 | 70 | 553 | 64*64 | 165 |
