| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4M310-08 |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 2 Position | Port Size: | In=Out=1/4'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8MPa (21 To 114PSI) | Max Pressure Resistance: | 1.5MPa (215PSI) |
| Body Material: | Aluminum Alloy | Max. Frequency: | 5 Cycle / Second |
| Voltages: | 220V AC, 110V AC, 24V AC, 24V DC, 12V DC | ||
| Highlight: | Airtac Type Solenoid Valve,4M310-08 Solenoid Valve,4M310-08 Namur Solenoid Valve |
||

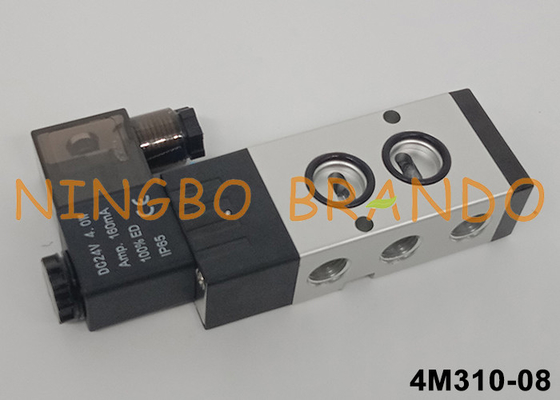

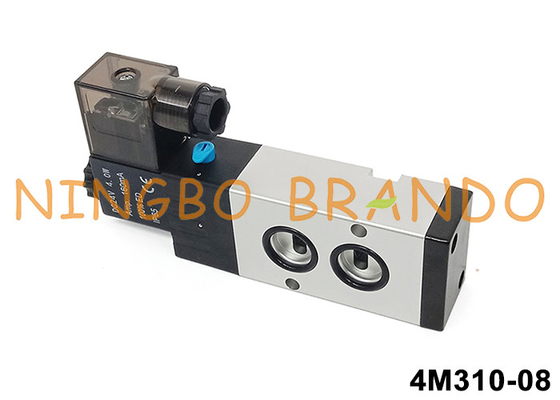

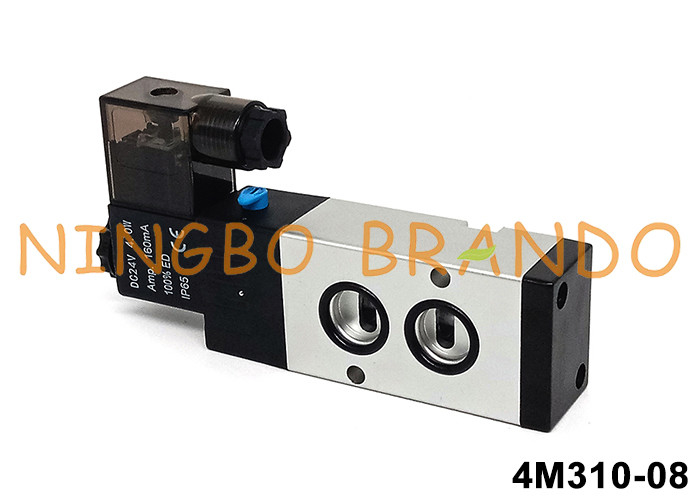

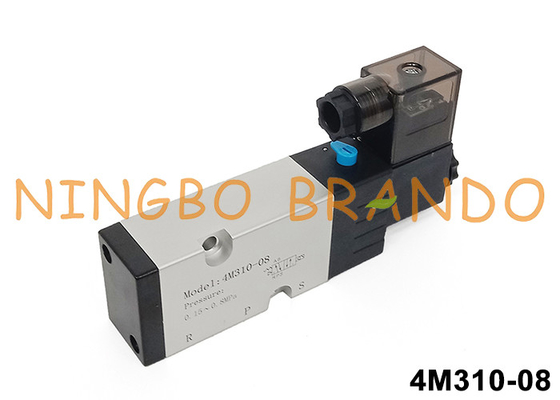

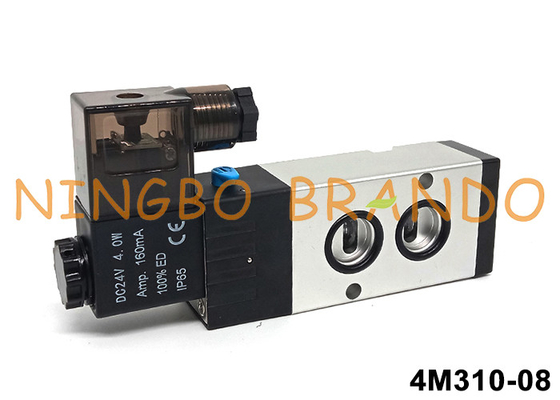

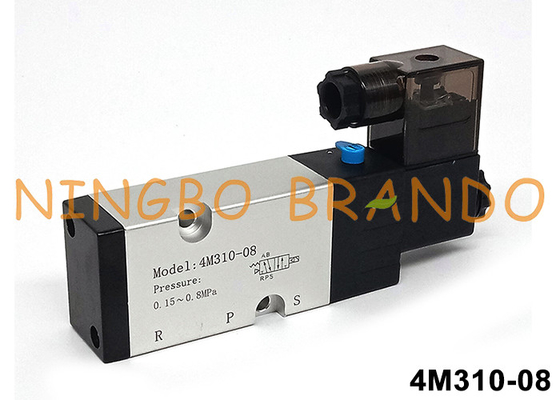

Airtac Type 4M310-08 Namur Pilot Solenoid Valve 5/2 Way 24V 220V
BRANDO’s 5/2 Way Namur Solenoid Valve Series are suitable for direct mounting onto pneumatic rotary actuators for both double acting and spring return configurations with Namur interface.
Product Features of NAMUR solenoid valve:
1. Internally piloted structure.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has ittle attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional.
Data of NAMUR Pneumatic Solenoid Valves:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=Out=1/4'' | In=Out=1/4'' | In=Out=3/8'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||
Dimension of 4M310-08 Namur Solenoid Valve:
