Name: Danfoss Type KVL 35 Crankcase Pressure Regulating Valve 034L0052
Brand: Ningbo Brando Hardware Co., Ltd
SKU: KVL 35
Price: Negotiable USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

Danfoss Type KVL 35 Crankcase Pressure Regulating Valve 034L0052

Product Details:

Place of Origin:	China, Ningbo
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	KVL 35

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Crankcase Pressure Regulator	Refrigerant:	CFC, HCFC, HFC
Port Size:	1 3/8''	Connection:	Solder
Regulation Range:	0 To 6 Bar, Factory Setting = 2 Bar	Max Working Pressure:	14 Bar
Max P-band:	2.0 Bar	Medium Temperature Range:	-200 To +150℃
Highlight:	Danfoss Type Crankcase Pressure Regulating Valve , KVL 35 Crankcase Pressure Regulating Valve , 034L0052 Crankcase Pressure Regulator

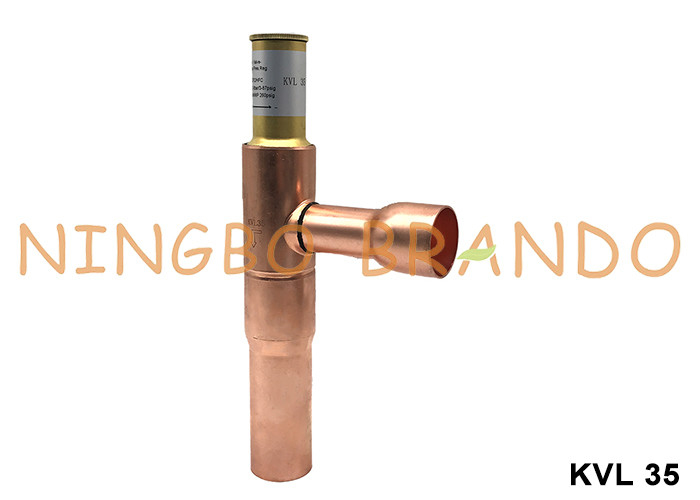

Danfoss Type KVL 35 Crankcase Pressure Regulating Valve 034L0052

A CPR or Crankcase Pressure Regulator is nothing more than a pressure reducing valve. When installed on a compressor suction inlet and properly adjusted, the CPR will prevent the compressor suction pressure from ever rising above the CPR's setting.

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''
