| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | H9S10B04 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | High Pressure Solenoid Valve | Port Size: | G1/2'' |
|---|---|---|---|
| Orifice Size: | 10mm | Body Material: | Stainless Steel 304, Stainless Steel 316 |
| Seal Material: | NBR, EPDM, FKM | Working Media: | Air, Water, Gas, Liquid, Light Oil, Etc |
| Max Working Pressure: | 150 Bar | Operation: | Piston Pilot Operated |
| Function: | 2 Way Normally Closed | Voltage: | 220VAC, 110VAC, 24VAC, 24VDC, 12VDC |
| Highlight: | 150 bar High Pressure Solenoid Valve,1/2'' High Pressure Solenoid Valve,High Pressure Solenoid Valve For Water |
||

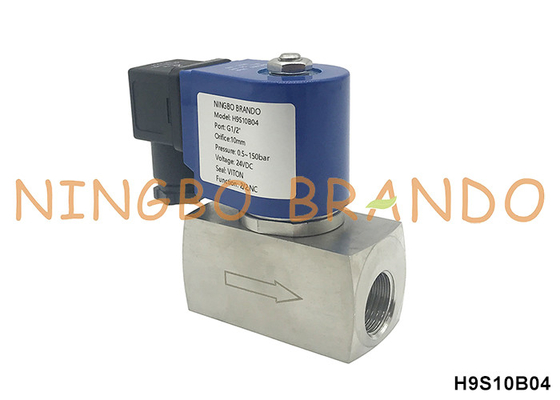

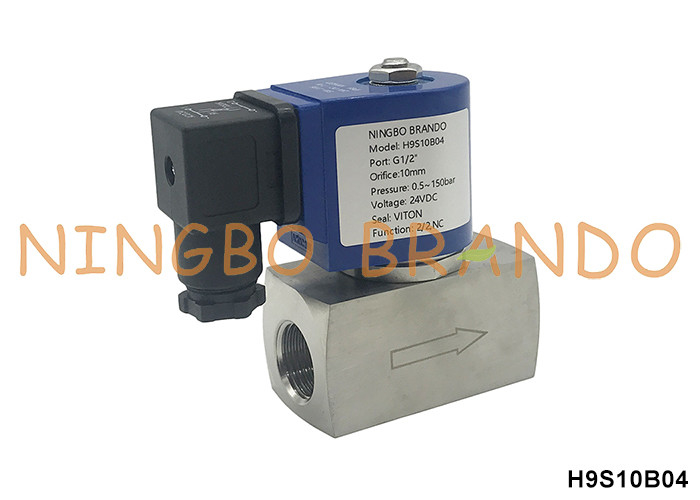

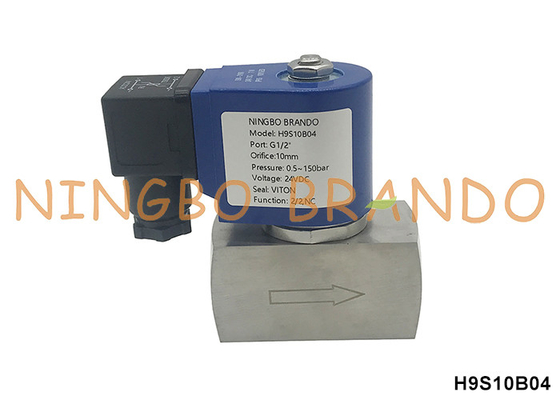

150 bar 1/2'' High Pressure Solenoid Valve For Water Air Gas 24V 110V 220V
Product Features:
1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
3. Max Working Pressure: 150 bar
4. Body Material: SS314, SS316
5. Seal Material: NBR, EPDM, FKM
6. Port Size: G1/4'', G3/8'', G1/2''
7. Orifice Size: 6mm, 8mm, 10mm
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
Main Dimension:
Our Production:
More High Pressure Valves:
|
|
|
|
| Max 200 bar | Max 200 bar | Max 300 bar | Max 360 bar |
