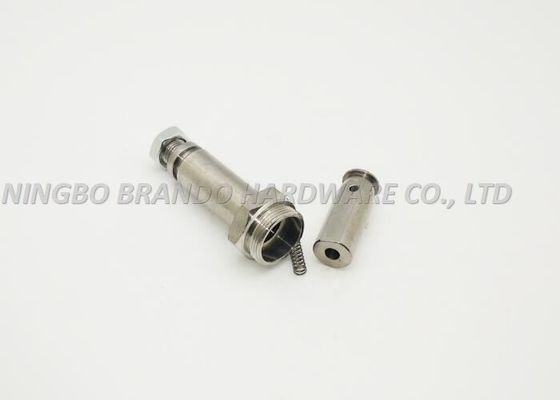

Vertical Cut Surface Guide Core/NBR Seal Solenoid Stem With Low Remanence

Vertical Cut Surface Guide Core/NBR Seal Solenoid Stem With Low Remanence

Dimension of this item

1.Brand:BRANDO

2.NO.BAPC214548001

3.Related volage:AC/DC

4.Item weight:79.5mm

5.Tube out diameter:14.5mm

6.Tube height:48.0mm

7.Movable core height:33.6mm

8.Depth of solenoid stem armature:33.2mm

9.Solenoid stem armature height:62.6mm

10.Thread connection:Male thread

11.Spring type:Interior spring

12.Thread height:12.1mm

13.Seal material:NBR

14.solenoid stem Armature -material:SS304

15.Material of Plunger tube and spring:SS304

Application of Solenoid Stem armature

1.This item For pneumatic solenoid valve and pneumatic divices/equipment

2.Pneumatic solenoid valve is one kind of solenoid valve.Different kinds of solenoid stem armature can be assembled and use in a wide range of industry.

For example:

Dental equipment

Dust collector valve

Automatic vending machine

Pulse device

Pneumatic equipment

Auto drain industry

Air suspension

Refrigeration device

Hyraulic industry

Life water and industry water supply

Air condition device

Pipe switch,etc

Why solenoid valve is widely used in daily life?

1, leakage and plugging, internal leakage easy to control, use safety

Internal and external leakage is a factor that endangers safety. Other automatic control valves usually extend the stem, and the movable core is controlled by an electric, pneumatic, and hydraulic actuator to rotate or move. So it’s hard to solve long-term action of the valve stem dynamic seal leakage problem; solenoid valve is sealed by electromagnetic force in the electric control valve magnetic sleeve core to complete, there is no dynamic seal, so leakage is easy to plug. solenoid valve structure easy to control internal leakage. Therefore, the solenoid valve is particularly safe to use, especially for corrosive, toxic or high and low temperature media.

2.The system is simple and connect to the computer in low price

The solenoid valve itself is simple in structure and low in price. It is easier to install and maintain than other types of actuators such as control valves. What's more, the automatic control system is much simpler and the price is much lower. Because solenoid valve is switch signal control, it is very convenient to connect with industrial control computer. In today's era of computer popularization and price decline, the advantages of solenoid valves are more obvious.

3.Action express,cost low power with lightweight appearance.

The response time of the solenoid valve can be as short as several milliseconds, and even the pilot solenoid valve can be controlled within tens of milliseconds. Because of self loop, the reaction is more sensitive than other automatic control valves. Properly designed solenoid valve coil power consumption is very low, energy-saving products; can also be achieved by triggering action, automatic valve position, usually without power consumption. The size of the solenoid valve is small, which saves space and has light and beautiful appearance.
