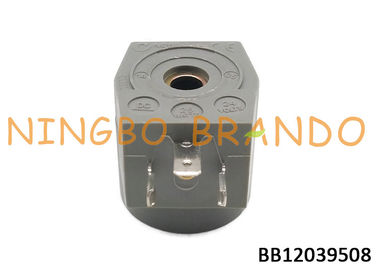

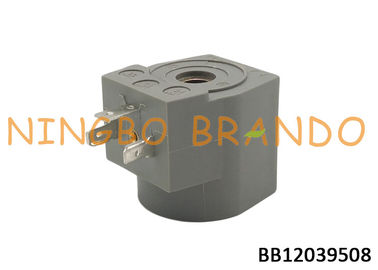

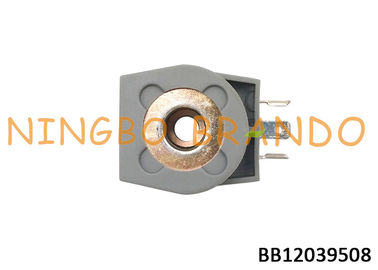

CY123 QR N282 C53056N 12V DC K306 Pneumatic Solenoid Coil For Goyen Type Dust Collector Solenoid Valve

CY123 QR N282 C53056N 12V DC K306 Pneumatic Solenoid Coil For Goyen Type Dust Collector Solenoid Valve

When the electromagnetic coil is energized, a magnetic field is generated, and the magnetic field generates an electromagnetic force. The electromagnetic coil includes a grounding pin (metal), a pin (metal), an enameled wire (including a lacquer layer and a copper wire), an outer plastic, a skeleton (plastic), and a bracket (metal). Solenoid valve coil strong adaptability to the environment, can work normally under vacuum, negative pressure, zero pressure, corrosion resistance, aging resistance, long service life and other characteristics. It is widely used in mobile phone, TCXO circuit and rf transceiver module, VCO, global positioning system, wireless network, bluetooth module, communication equipment, LCD TV, camera, laptop, inkjet printer, copy, etc. Machines, monitors, game consoles, color televisions, video recorders, CD players, digital cameras, automotive electronics, medical machinery and so on, play a very prominent role.

The electric magnetic coil is classified according to the voltage used:
1. AC coil Symbol: AC input AC output AC work;
2. DC coil Symbol: DC input DC output DC operation;
3. Rectifier Coil Symbol: RAC input AC output DC operation.

We also have 200/240v 220V AC 50/60Hz(K0300), 100/120V 110V AC 50/60Hz(K0301), 24V AC 50/60Hz(K0302), 110V DC (K0303), 48VDC(K0304), 24V DC(K0305), 12VDC (K0306).

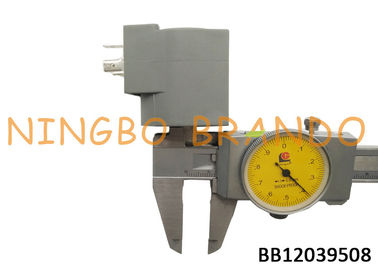

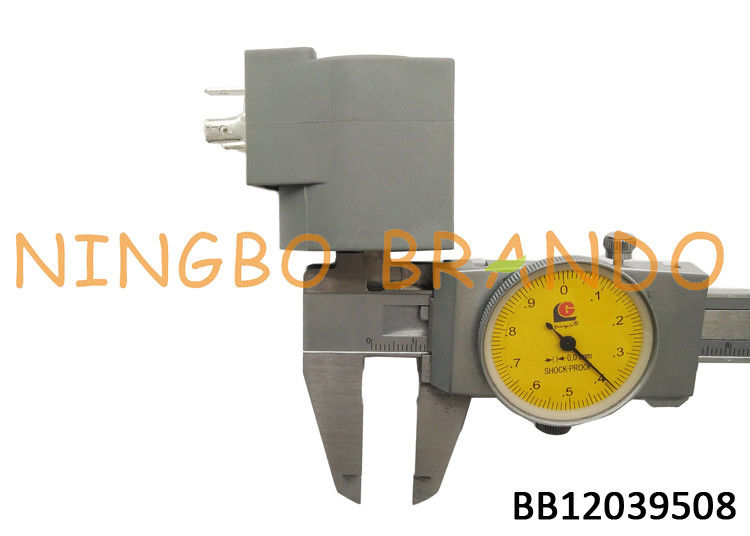

Hole Size: 12mm
Height: 41mm
Width: 37.5mm
Voltage: 12V DC
Power: 20Watt
Connector: DIN43650A
Insulation Class: F.H
Protection Class: IP64
Application: Goyen Type Dust Collector Pulse Valve

Dimension of K0302 24V AC Dust Collector Valve Coil:

Solenoid Pulse Valve Coil Technical Data:

Application Example:

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
