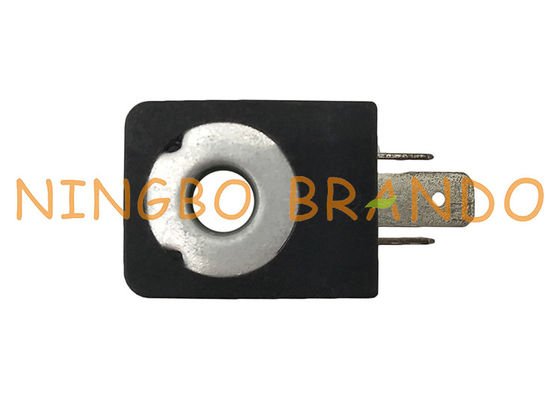

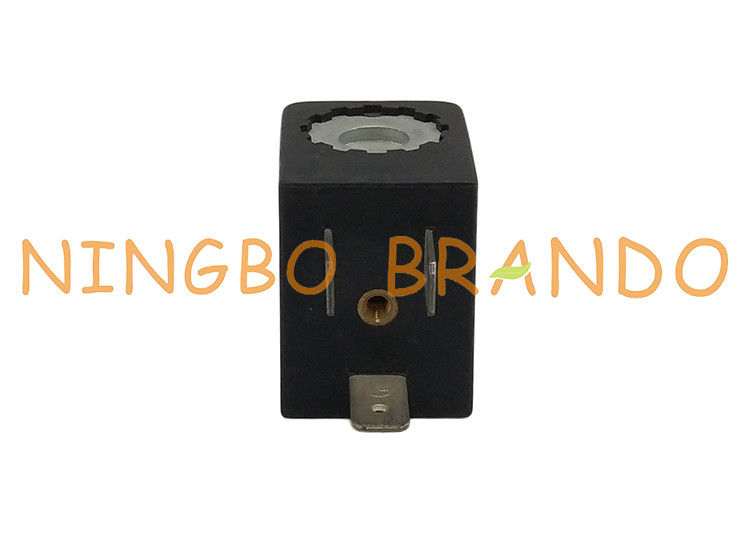

AMP 6.3 X 0.8 EVI 7/8 Solenoid Coil For Pneumatic Solenoid Valve

AMP 6.3 x 0.8 EVI 7/8 Solenoid Coil For Pneumatic Solenoid Valve

Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Hole Size:8mm
Height:29mm
Width:22mm
Voltage:AC220V, DC24V
Power:6.5VA, 3W, 5.5W, 6W
Connection Type:DIN43650B
Insulation class:F, H
Protection class:IP65, IP67, IP68
Application:Pneumatic valve

Dimension of Pneumatic Valve Solenoid Coil :

Technical Data:

Details:

Hole size 8.0mm	Height 29.0mm

​Attention:​

1. This air suspension compressor pump solenoid coil is made of high quality components.
2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Why do solenoid coils burn out?

Solenoid coils are designed to convert electrical energy into mechanical movement by means of a magnet field, which means as they consume power like a light bulb for example they will become hot, and the higher the wattage or power consumption or the longer they are switched ON the hotter they can become.

If the coil becomes too hot or above its temperature rating (copper winding class rating) the copper or insulating material can fail to short circuit.

Other reasons include high media or ambient temperatures preventing the coil from cooling sufficiently, water ingress between armature and coil or if the coil is removed whilst energised!!

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.
