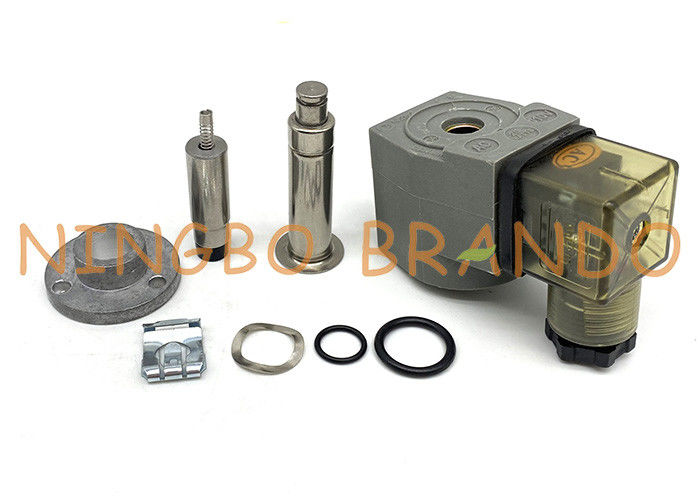

K0380 M1131B Goyen Type 12.0mm Dust Collector Solenoid Valve Stem

K0380 M1131B Goyen Type 12.0mm Dust Collector Solenoid Valve Stem

This is K0380 (M1131B) / K0580 (M1141B) solenoid kit for goyen pulse valve and solenoid valve repair kit. The related Goyen pulse jet valves, Goyen solenoid valves, solenoid coils and diaphragms are also supply. Welcome to your any inquiry and problem.

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Goyen Pulse Valve Armature:

Picture	Dimension	Brando Model	BAPC212050501
		Reference Number	K0380, M1131B
		Plunger Tube Material	Stainless Steel
		Seal Material	NBR
		Voltage	AC, DC
		Function	2 Way, Normally Closed
		Fitted Coil	QR, QT2
		Fitted Valve	Goyen Solenoid Valve

Picture	Dimension	Model	QR
		Reference No	CY123, N282, C53056N
		Voltage	24VDC, 220VAC
		Power	25VA, 20W
		Fitted Armature Plunger	K0380 (M1131B), K0580 (M1141B)
		Fitted Valve	Goyen Pulse Valve

Picture	Dimension	Model	QT2
		Voltage	12VDC, 24VDC, 48VDC, 110VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
		Power	25VA, 20W
		Fitted Armature Plunger	K0380 (M1131B), K0580 (M1141B)
		Fitted Valve	Goyen RCA3D Solenoid Valve

Brando Solenoid Valve Armature Production Video:

Related product supply:

* Solenoid Valve Coil:

* Diaphragm Repair Kit:

* Pulse Jet Valve:
