| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | MP-C-011 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 300000 set per month |
| Product Name: | MP-C-011 Solenoid Coil | Voltage: | 24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz) |
|---|---|---|---|
| Reference No: | 099257-009-D, 099257-016-D, 099257-005-D, 099257-008-D, 099257-001-D 099257-004G, 099257-014G, 099257-006G | Connection Type: | Flying Leads |
| Insulation Class: | F, H | Temperatrue Class: | T, B |
| Repair Solenoid Valve Model: | 29515, 29547, 29698, 18724, 18721, 17120, 17121 | Application: | Henny Penny Fryer |
| Highlight: | 24V AC Solenoid Coil,Henny Penny Fryer Solenoid Valve Coil,MP-C-011 ASCO Coil |
||

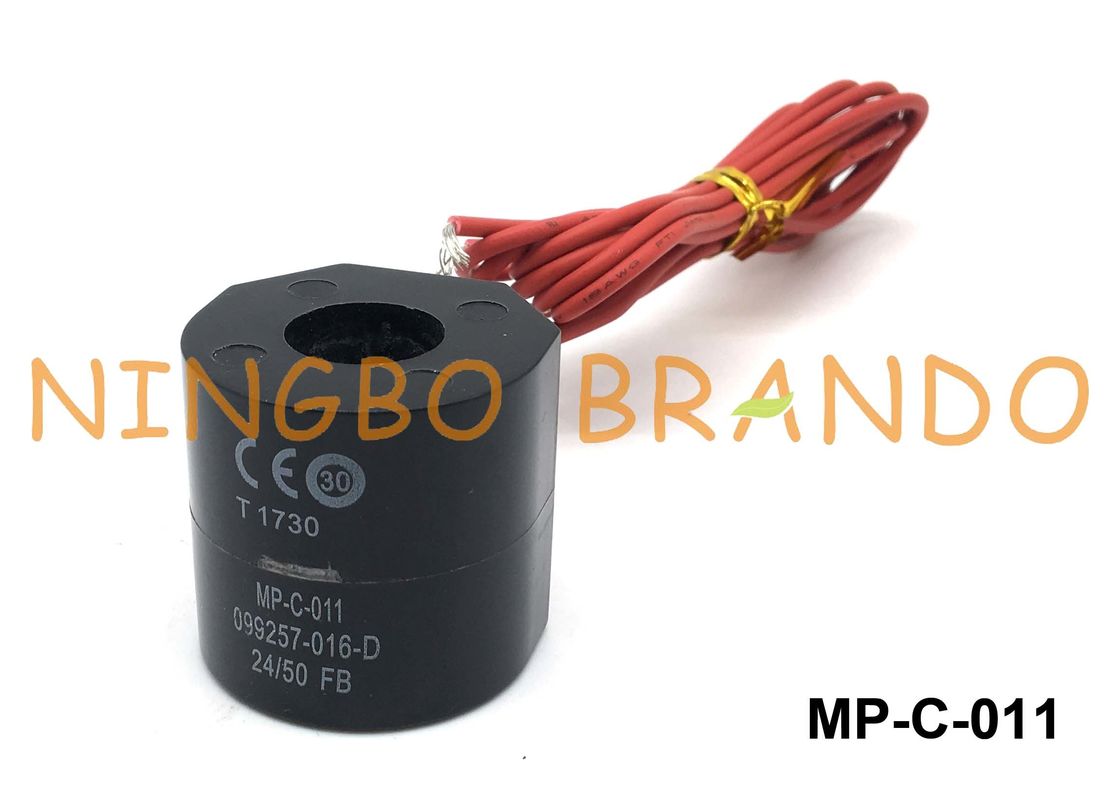

MP-C-011 24V AC Solenoid Coil For Henny Penny Fryer 29547 Valve
Brando offers a wide range of solenoid valve coils, which designed into various types, mainly features encapsulated coils, including thermoplastic and thermosetting. Our coils have the characteristics of High Performance, High Reliability and Long Service Life, can be used for Different Applications. We also provide excellent Customized Service.
Solenoid Coil Main Structure:
The conventional structure of a solenoid valve coil includes: Framework, Enameled copper wire, PIN, Yoke and Encapsulation. In addition, according to the actual use, there will be a magnetizing guide ring, a rectifier bridge be used for rectifying, etc.
Dimension & Data of MP-C-011 Solenoid Coil:
|
Model
|
MP-C-011
|
|
Connection Type
|
Flying Leads
|
|
Voltage
|
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
|
|
Insulation Class
|
H, F
|
|
Temperature Class
|
T, B
|
|
Model
|
BAPC216049003
|
|
Function
|
2/2 Way, Normally Closed
|
|
Tube Material
|
Stainless Steel
|
|
Shading Ring Material
|
Copper
|
|
Seat Type
|
Thread
|
|
Fitted Coil
|
MP-C-011
|
|
Application Example
|
Henny Penny Fryer
|
Multi-angle display of MP-C-011 solenoid coil:
MP-C-011 Coil surface parameter printing display:
Product Video of MP-C-011 Solenoid Coil:
Brando Factory Production Video of Solenoid Coils:
