Refrigeration Valve Spare Part Stainless Steel Solenoid Armature Assembly

Refrigeration Valve Spare Part Stainless Steel Solenoid Armature Assembly

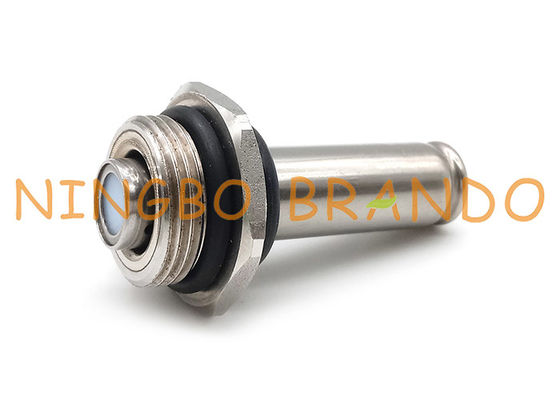

This armature assembly is designed for refrigeration solenoid valve, including 1 x stainless steel armature tube, 1 x stainless steel plunger with PTFE seal and 1 x stainless steel spring. The armature tube outer diameter is 11mm, so it is suitable to 11mm inner hole diameter solenoid valve coil. The standard plunger's seal material is PTFE, but HNBR, VITON, EPDM, Silicone are all available to customize.

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

      Copper Shading Ring                        Thread Seat

                  Plunger Slot                                 PTFE Seal

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene.

Being hydrophobic, non-wetting, high density and resistant to high temperatures, PTFE is an incredibly versatile material with a wide variety of applications, though it's perhaps best-known for its non-stick properties.

ADVANTAGES OF USING PTFE FILLED COMPOUNDS
Excellent chemical resistance
Wide range of service temperature
Excellent dielectric properties
Non stick, low friction
No embrittlement or ageing
Smooth surface finish can be achieved
Non wetting
Outstanding corrosion protection
Electrical insulation
High thermal stability and flame resistance
Resistance to weathering
Food grade compliancy

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
