Waterproof DIN 43650 Form B Pneumatic Solenoid Valve Magnetic Coil

Waterproof DIN 43650 Form B Pneumatic Solenoid Valve Magnetic Coil

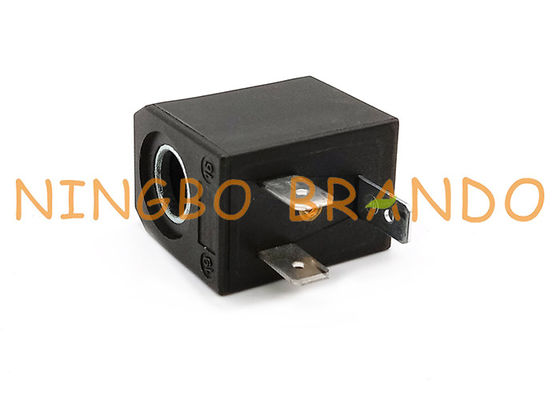

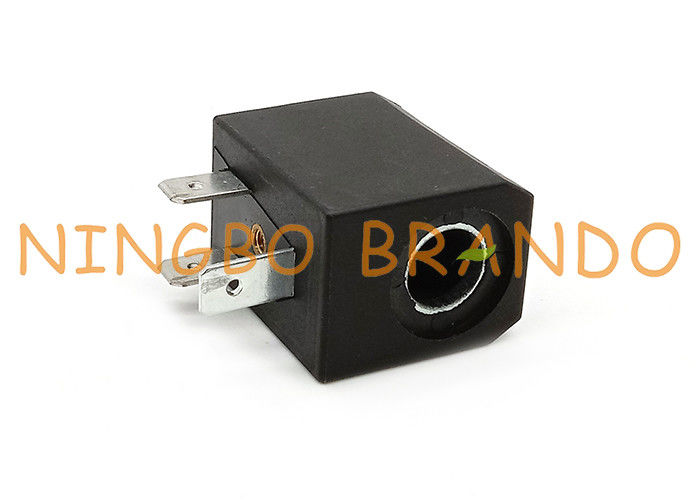

This is a waterproof solenoid valve coil, coil inner hole diameter is 10.2mm, coil height is 31.5mm, coil width is 22mm, coil protection class is IP67, IP68, coil insulation class is H, coil connection type is DIN43650B, 24VDC 24VAC 230VAC voltages, 5VA, 3.5VA, 6W power, other voltages and power can be customized.

DIN 43650 Form B connectors have 2 different pin spacings: 10mm & 11mm between the #1 & #2 pins. 11mm connectors will have 3 flat blade contacts. 10mm connectors will have 1 flat blade and 2 U shaped contacts pointing outward

DIN 43650 standards are a set of standards developed by Deutsches Institut for Normung e.V. (DIN), the German Institute for Standardization. You may also see ISO 4400 (the International Organization for Standardization) and EN 175301-803 ( European Standards) used to describe these connectors. DIN 43650 connectors are primarily used with solenoid valves offering a secure and water resistant method for applying power. The Din 43650 connectors can be found in hydraulics and pneumatics applications as well as pressure sensors and switches, optical, limit and proximity switches. They can also be used in marine applications.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of solenoid valve coil:

Main dimension of solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
